Removal

REMOVAL

NOTE: Before proceeding, Technician Safety Information Vehicle Damage Warnings .

1. Raise and support the vehicle. Maintenance

NOTE: If removing parking brake shoes on both sides of vehicle, perform remaining steps on each side of the vehicle.





2. Access and remove the rear brake rotor (3). Brake Rotor - Removal
3. Turn the brake shoe adjuster wheel until the adjuster is at shortest length.





4. Remove the upper return spring (1) from the anchor pin (3) and the rear brake shoe.
5. Remove the upper return spring (2) from the anchor pin (3) and the front brake shoe.





6. Remove the brake shoe hold-down springs and pins (1, 2). Rotate the pins 90° to disengage.

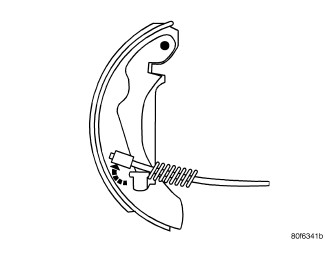

7. Remove the parking brake cable from the lever on the rear parking brake shoe.





8. Remove the brake shoes (2, 6), adjuster (5) and lower return spring (3) as an assembly from the support plate.
9. If necessary, remove the strut (1).
10. Remove the lower return spring (3) and adjuster (5) from the shoes (2, 6).
