Parking Brake Lever - Installation

INSTALLATION

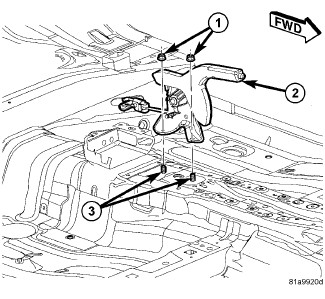

1. Place the parking brake lever (2) on the mounting studs (3) affixed to the vehicle floor pan. Install and tighten the nuts (1) to 25 Nm (221 in. lbs.).

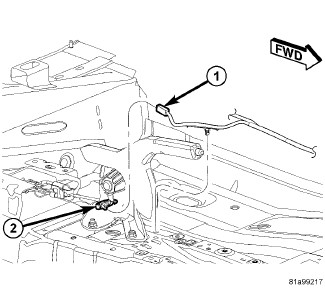

2. Connect the wiring harness connector (1) to the parking brake switch (2).






CAUTION: A NEW parking brake cable equalizer (2) must be installed when servicing the parking brake cables or lever. The equalizer has an integrated bent nail tensioner that needs to be stretched upon installation placing the correct tension on the cables.

3. Remove and install a NEW parking brake cable equalizer (2) on the parking brake lever output cable.
4. Install the rear parking brake cables (1) into the equalizer (2) on the parking brake lever (3) output cable.
5. Ensure that the parking brake cables are correctly installed on the equalizer and aligned with the cable track on the parking brake lever.






NOTE: Actuating the parking brake lever to its fully applied position one time after tightening the adjustment nut will yield (stretch) the bent nail portion of the equalizer approximately 6 mm (1/4 inch). This process will correctly set the parking brake cable tension.

6. Adjust parking brake cable tension using the following steps:
a. Place the parking brake lever in the fully released (down) position.
b. Tighten the adjusting nut (3) on the parking brake lever output cable until 22 millimeters (0.87 in.) of thread (1) is out past the end of the adjustment nut.
c. Actuate the parking brake lever to its fully applied position one time, then reposition it to its fully released (down) position.





7. Raise the vehicle to a point where the rear wheels just clear the floor.
8. Check the rear wheels of the vehicle; they should rotate freely without dragging.
9. Apply the parking brake. Check the rear wheels of the vehicle. They should not rotate.
10. Return the parking brake lever to its fully released (down) position and check the rear wheels. They should rotate freely without dragging.
11. Apply the parking brake.
12. Lower the vehicle.

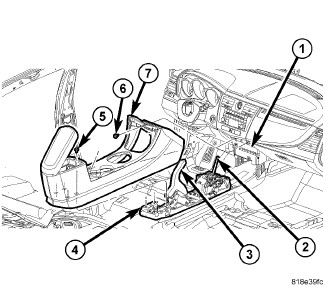

13. Install the center console. Shifter Housing - Installation
14. Remove the blocks from the tires and wheel assemblies.
15. Connect the battery negative cable to its post on the battery.
