Brake Master Cylinder - Installation

LEFT HAND DRIVE






NOTE: The master cylinder must be bled before installing it on the vehicle.

1. Bench bleed the master cylinder. Procedures
2. Wipe the face of the power brake booster clean where the vacuum seal on the rear of the master cylinder comes in contact when it's installed. Do not get any cleaner or debris inside the booster.

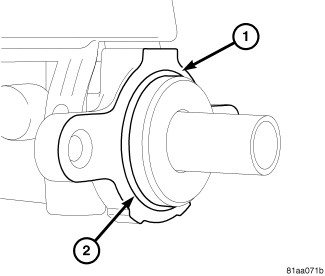

CAUTION: When installing a master cylinder on the vehicle, a NEW vacuum O-ring seal (2) MUST be installed on the master cylinder mounting flange (1).

3. If the master cylinder does not have a new vacuum O-ring seal (2) on the mounting flange (1), remove it. Install a NEW vacuum O-ring seal on the master cylinder mounting flange making sure the O-ring fits evenly against the mounting flange.






CAUTION: If resistance is met during master cylinder insertion into power brake booster, the master cylinder push rod may not be lined up with the booster push rod. Remove the master cylinder, realign and insert it again.

4. Line the master cylinder mounting holes up with the mounting studs on the power brake booster. Ensure the master cylinder piston push rod lines up with the booster push rod, then carefully slide the master cylinder into the power brake booster until it contacts the face of the booster.
5. Install two NEW master cylinder mounting nuts (3). Tighten each nut to 25 Nm (18 ft. lbs.).

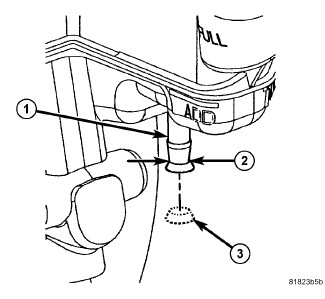

6. If equipped with a manual transaxle and a new reservoir is being installed, using an appropriate cutting tool, cut the clutch actuator port at the center of the "V" groove (2) opening the hydraulic clutch port (1). Discard the severed plug (3).

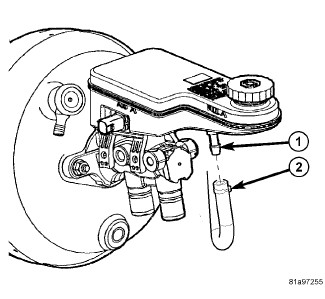

7. If equipped with a manual transaxle, slide the clutch actuator hose (2) onto the reservoir port (1). Install the hose clamp just past the upset bead on the port.

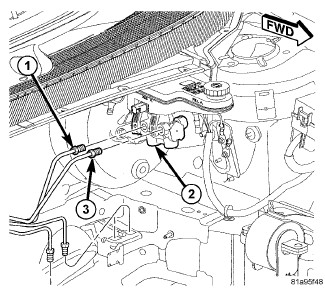

8. Connect the primary (1) and secondary (3) brake tubes to the master cylinder (2) outlet ports. Tighten the tube nuts to 20 Nm (177 in. lbs.).

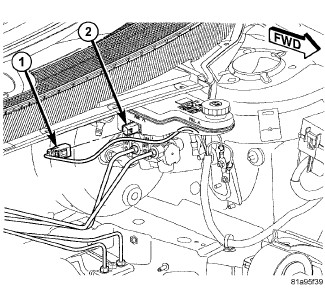

9. Connect the wiring harness connector (1) to the brake fluid level switch (2).
10. Connect the negative (ground) cable on the battery.
11. Fill the master cylinder reservoir to the proper level.

WARNING: Be certain a firm brake pedal is achieved prior to attempting to operate the vehicle. If a firm brake pedal cannot be achieved, bleed the brake hydraulic system and check for leaks. Service and Repair

12. Road test the vehicle to ensure proper operation of the brakes.
