Brake Master Cylinder - Disassembly

DISASSEMBLY

1. Clean the master cylinder housing and brake fluid reservoir. Use only Mopar(R) Brake Parts Cleaner or equivalent.
2. Remove the brake fluid reservoir cap. Using a syringe or equivalent type tool, empty as much brake fluid as possible from the reservoir.





3. Remove the four reservoir retaining tabs from the mounting posts on the master cylinder housing.

4. Pull the reservoir straight up and remove it from the grommet seals in master cylinder housing.





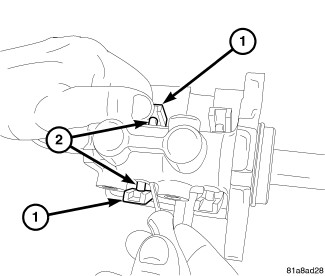

5. If the reservoir is being replaced, remove the fluid level switch. Push together the retaining tabs (1) holding the brake fluid level switch in place in the brake fluid reservoir (2), then pull the brake fluid level switch out the opposite side of the reservoir.





6. Remove the vacuum O-ring seal (2) from the master cylinder mounting flange (1).
