Front Seat Cushion Pan - Installation

INSTALLATION

1. Set seat cushion pan into place.
2. Install wire harness to cushion pan.

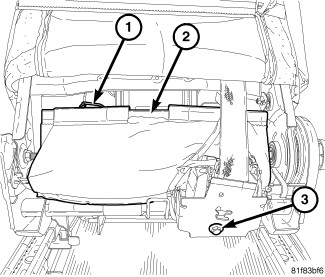

3. Install seat pan cushion fasteners (1). Tighten to 11 Nm (8 ft.lbs.)




4. Engage the seat cushion cover J-clip (1).
5. Place the retractor into position and install the mounting bolt (3).





6. Install the inner shield (2) and mounting fasteners (1).





7. Engage the seat back cover J-clips to the inner shield.
8. Install the rear outer shield (2).
9. Install cushion side shields.Seat Cushion Side Shields - Installation
10. Install seat in vehicle.Seat - Installation
