Header Weatherstrip

HEADER WEATHERSTRIP





1. Place top into vertical position, Convertible Top - Description.

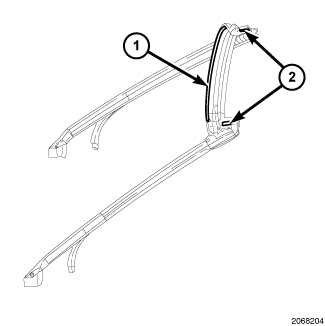

2. Start with one end of the header weatherstrip and lift up to remove weatherstrip from tape (2).
3. Carefully remove the weatherstrip by lifting up on the weatherstrip moving down the A-Pillar.
4. Carefully remove the header weatherstrip from the retainer going across the header.
5. Carefully remove the weatherstrip by lifting up on the weatherstrip moving down the other A-Pillar.
6. Remove any foam (1) left on header sheet metal.
7. Clean header and A-Pillar.
