Convertible Top Chime - Installation
INSTALLATION

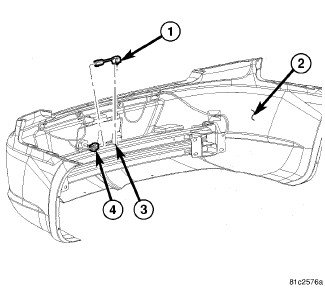

1. Position the power folding top chime (1) onto the rear bumper reinforcement.
2. Secure the chime to the reinforcement by pushing down until the chime retainer is fully seated into he mounting hole (3).
3. Connect the power folding top chime electrical connector (4).
4. Lower the vehicle.
5. Connect the battery negative cable.
