Home >> Chrysler >> 2010 >> Sebring Convertible L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Service and Repair >> Outside Rearview Mirror - Removal

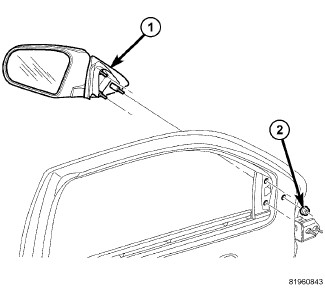

Outside Rearview Mirror - Removal






REMOVAL





1. Using trim stick C-4755, remove side view mirror flag.Front Door Mirror Flag - Removal
2. Disconnect power window mirror motor wire connector, if so equipped.
3. Disconnect manual mirror adjuster from side mirror cover, if so equipped.
4. Remove nuts attaching side view mirror to mirror flag.
5. Remove side view mirror from vehicle.
