Shifter Bezel - Removal
>>
Manual
Manual
MANUAL
1.

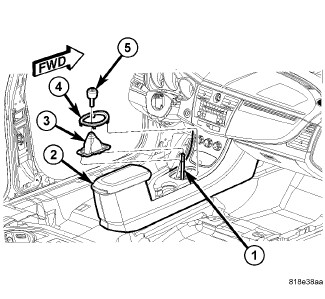

Pull up on shifter knob (5) and remove from shifter shaft (1).
2.
Using trim stick C-4755 or equivalent, pry up on bezel (4) and remove from shifter pod).
