Quarter Trim Panel

CONVERTIBLE

NOTE: Ensure the convertible top is in the full open and stowed position.





1. Position the quarter trim panel (1) in place and firmly snap into place.

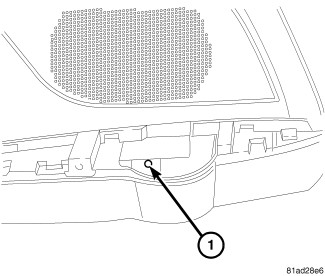

2. Install the one screw (1) into the armrest pocket.

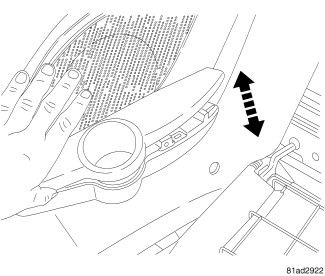

3. Position the armrest in place and firmly snap into place.
4. Install rear seat back. Seat Back - Installation
5. Install the rear seat cushion Seat Cushion Cover - Installation.
6. Install the retractor/seat back cover.
7. Raise the convertible top to the full closed position and verify proper operation of the flipper door.
