Rear Shelf Panel - Removal

REMOVAL

1. Fold seat backs down.





2. Remove the lower quarter trim panel. Quarter Trim Panel - Removal.

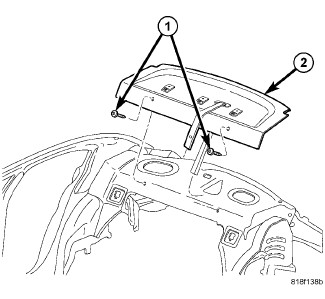

3. Remove push-in (1) fasteners attaching rear shelf trim to shelf panel (2).
4. Disconnect the center shoulder belt at the base. Seat Belt Retractor - Removal
5. Pull trim forward to disengage clip attaching trim to shelf panel.
6. Feed seat belt through the seat belt opening in the shelf panel.

CAUTION: Do not pull on child tether covers or use as a handle for removal of panel.

7. Remove shelf trim from vehicle.
