Rear Bumper Reinforcement - Removal

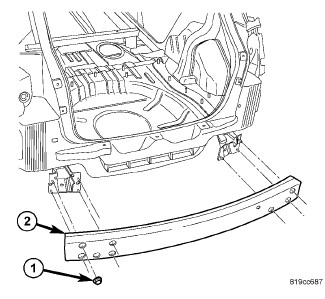

REMOVAL





1. Remove rear fascia .
2. Support bumper reinforcement (2) on a suitable lifting device.
3. Mark position of nuts (1) on frame rail to aid in installation.
4. Remove license plate connector push pin from rear bumper reinforcement.
5. Remove nuts (1) attaching rear bumper reinforcement (2) to frame rail.
6. Remove bumper reinforcement (2) from vehicle.
