Remote Radio Switches - Removal

REMOVAL

WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable. Wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.





1. Disconnect and isolate the battery negative cable.
2. Remove the driver side airbag module from the steering wheel. Driver Air Bag - Removal.

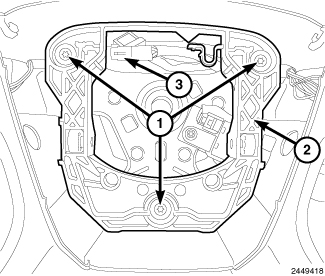

3. Disconnect the horn connector (3).
4. Remove retainers (1) and remove the horn button assembly (2).

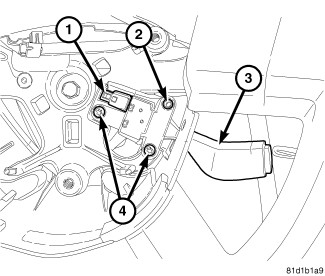

5. Remove the speed control switch (3) Speed Control Switch - Removal.

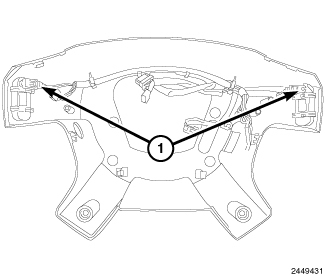

6. Disconnect the radio switches (1).
7. From the inside of the steering wheel rear trim cover, press firmly and evenly outward on the back of the switch to disengage the four snap features that secure the switch to the inside of the mounting hole.
8. From the outside of the steering wheel rear trim cover, remove the remote radio switch from the trim cover mounting hole.
