U1414

U1414-IMPLAUSIBLE/MISSING ECU CONFIGURATION DATA



- When Monitored:
With the ignition on. The Occupant Restraint Controller (ORC) on board diagnostics continuously monitors the CAN Bus message from the TIPM containing the ORC configuration data.

- Set Condition:
This DTC will set if the data is invalid or missing.





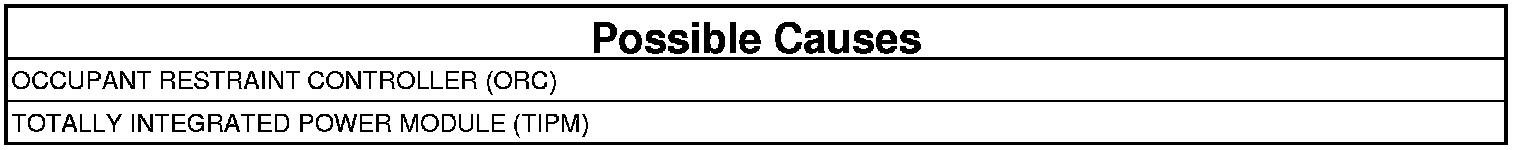

1. VERIFY TOTALLY INTEGRATED POWER MODULE (TIPM) OPERATION
1. Turn the ignition on.
2. With the scan tool, read TIPM DTC.

Does the scan tool display any TIPM DTC?

Yes

- Repair all TIPM active DTC or reprogram the TIPM before diagnosing the ORC DTC. Testing and Inspection

No

- Go To 2

2. CHECK OPERATION OF THE OCCUPANT RESTRAINT CONTROLLER

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and serious or fatal injury.

1. Replace the Occupant Restraint Controller.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

2. Connect the scan tool to the Data Link Connector - use the most current software available.
3. Wait one minute, and read active codes and if there are none present read the stored codes.

Did the active U1414-IMPLAUSIBLE/MISSING ECU CONFIGURATION DATA DTC return?

Yes

- Replace the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST.Body Verification Test

No

- Repair is complete.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
