U1120

U1120-LOST WHEEL DISTANCE MESSAGE



Theory of Operation

The Powertrain Control Module (PCM) receives the vehicle speed signal over the CAN C bus from the Anti-lock Brake Module.

- When Monitored:
Ignition on.

- Set Condition:
The PCM doesn't receive a vehicle speed signal from the Anti-Lock Brake Module over the CAN C bus.





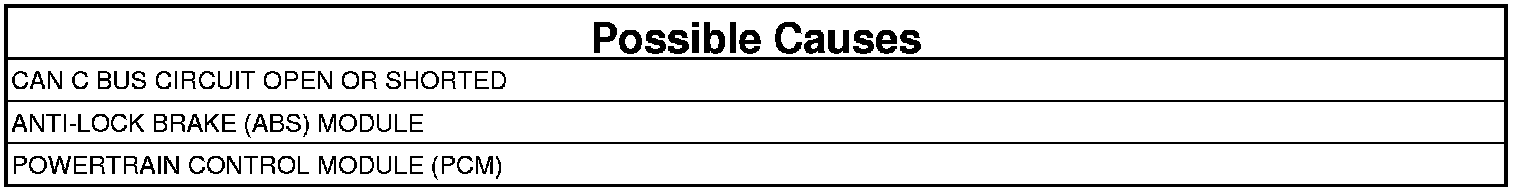

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. ACTIVE DTC

NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting any of the network components allows access to the source of the problem.

1. Ignition on, engine not running.
2. With a scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Perform the CHECKING FOR AN INTERMITTENT DTC diagnostic procedure. Checking for an Intermittent DTC.

2. U0121-LOST COMMUNICATION WITH ANTI-LOCK BRAKE MODULE ALSO SET
1. With a scan tool, select View DTCs.

Is the DTC U0121-LOST COMMUNICATION WITH ANTI-LOCK BRAKE MODULE also set?

Yes

- U0141 Perform the U0141-Lost Communication with IPM (FCM/TIPM) diagnostic procedure.

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test. PCM Verification Test.
