U0209

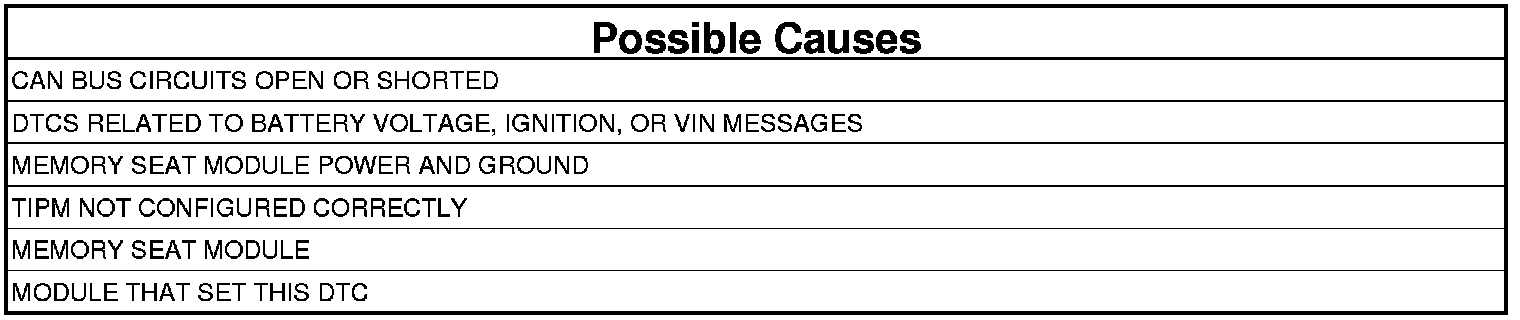

U0209-LOST COMMUNICATION WITH MEMORY SEAT CONTROL MODULE



- When Monitored:
Continuously when the ignition is on.

Battery voltage between 10 and 16 volts.

Ignition Off Draw (IOD) fused installed.

Totally Integrated Power Module (TIPM) is configured correctly.

- Set Condition:
Bus messages not received from the Memory Seat Module for approximately two to five seconds.





VERIFY THE DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE

NOTE: Make sure the IOD fuse is installed and the battery is fully charged before proceeding.

1. Turn the ignition on.
2. With the scan tool, read the active DTCs.

Is this DTC active?

Yes

- Testing and Inspection Perform the U0209-Lost Communication with Memory Seat Control Module diagnostic procedure.

No

- Stored Lost Communication DTCs Perform the Stored Lost Communication DTCs diagnostic procedure.
