U0170






U0170-LOST COMMUNICATION WITH UP-FRONT LEFT SATELLITE ACCELERATION SENSOR







- When Monitored:
The Occupant Restraint Controller (ORC) continuously communicates with the Front Left Impact Sensor over the sensor signal circuit. The sensor communication and on board diagnostics are powered by the ORC signal.

- Set Condition:
This code will set, if the ORC and the Front Left Impact Sensor do not establish and maintain valid data communications.





1. VERIFY THAT DTC U0170-LOST COMMUNICATION W/UP-FRONT LEFT SATELLITE ACCELERATION SENSOR IS ACTIVE

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. Using the scan tool, read ORC DTCs.

Does the scan tool display active: U0170-LOST COMMUNICATION W/UP-FRONT LEFT SATELLITE ACCELERATION SENSOR?

Yes

- Go To 2

No

- Perform the AIRBAG SYSTEM INTERMITTENT TEST. Initial Inspection and Diagnostic Overview.

2. CHECK THE (R79) and (R81) FRONT LEFT IMPACT SENSOR SIGNAL AND GROUND CIRCUITS FOR A SHORT TO BATTERY





WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Front Left Impact Sensor connector.
2. Disconnect the ORC connectors.
3. Connect the SRS Load Tool Adapter 8443-25 to the ORC connectors.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

4. Measure the voltage of the (R79) Front Left Impact Sensor Signal circuit and (R81) Front Left Impact Sensor Ground circuit between the Front Left Impact Sensor connector and ground.

Is there any voltage present?

Yes

- Repair the (R79) and (R81) Front Left Impact Sensor circuits for a short to battery.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- Go To 3

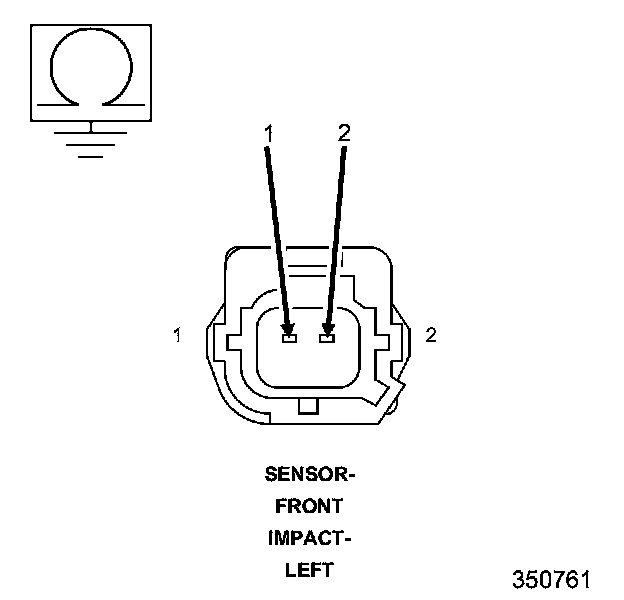

3. CHECK THE (R79) AND (R81) FRONT LEFT IMPACT SENSOR CIRCUITS FOR A SHORT TO GROUND





WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Measure the resistance of the (R79) Front Left Impact Sensor Signal circuit and (R81) Front Left Impact Sensor Ground circuit between the Front Left Impact Sensor connector and ground.

Is the resistance below 100K Ohms?

Yes

- Repair the (R79) and (R81) Front Left Impact Sensor circuits for a short to ground.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- Go To 4

4. CHECK THE (R79) AND (R81) FRONT LEFT IMPACT SENSOR CIRCUITS FOR A SHORT TOGETHER




1. Measure the resistance between the (R79) Front Left Impact Sensor Signal and (R81) Front Left Impact Sensor Ground circuits at the Front Left Impact Sensor connector.

Is the resistance below 100K Ohms?

Yes

- Repair the (R79) and (R81) Front Left Impact Sensor circuits shorted together.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- Go To 5

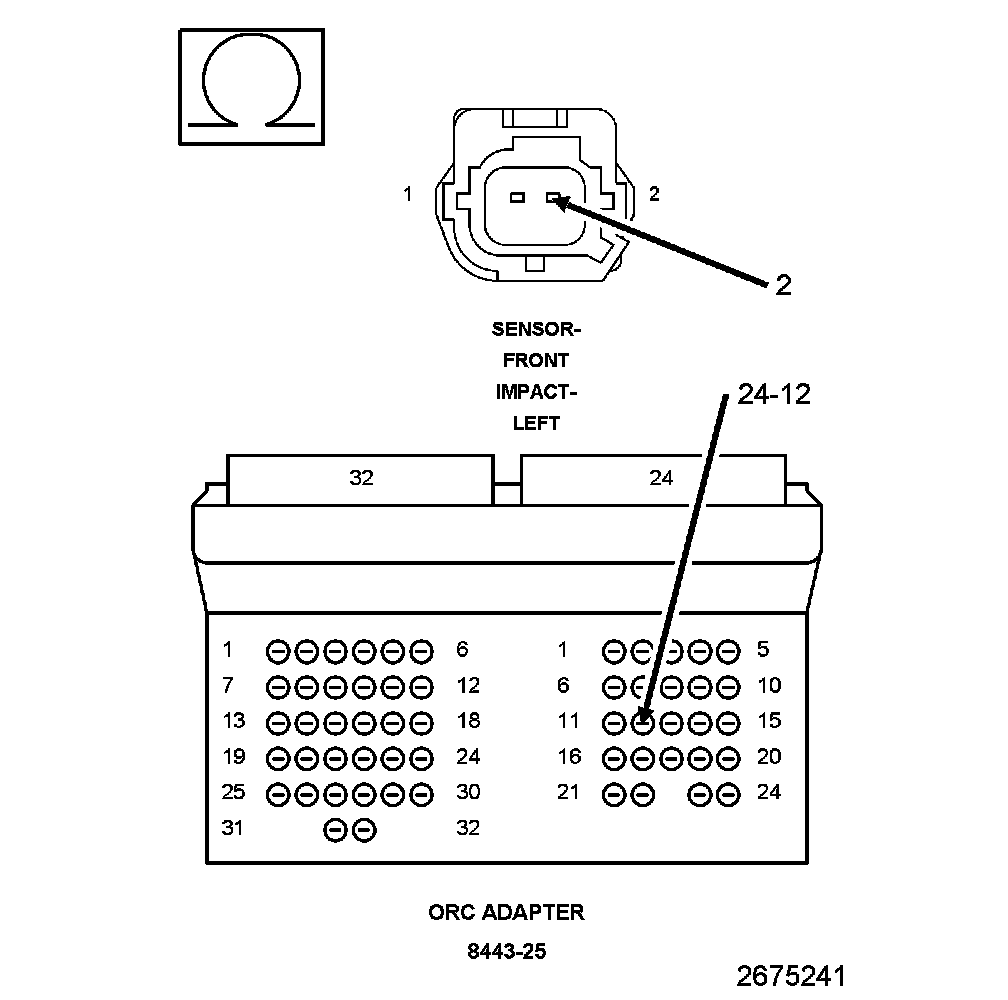

5. CHECK THE (R81) FRONT LEFT IMPACT SENSOR GROUND CIRCUIT FOR AN OPEN OR HIGH RESISTANCE




1. Measure the resistance of the (R81) Front Left Impact Sensor Ground circuit between the Front Left Impact Sensor connector and the SRS Load Tool Adaptor 8443-25.

Is the resistance below 1 Ohm?

Yes

- Go To 6

No

- Repair the (R81) Front Left Impact Sensor 1 Ground circuit for an open or high resistance.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

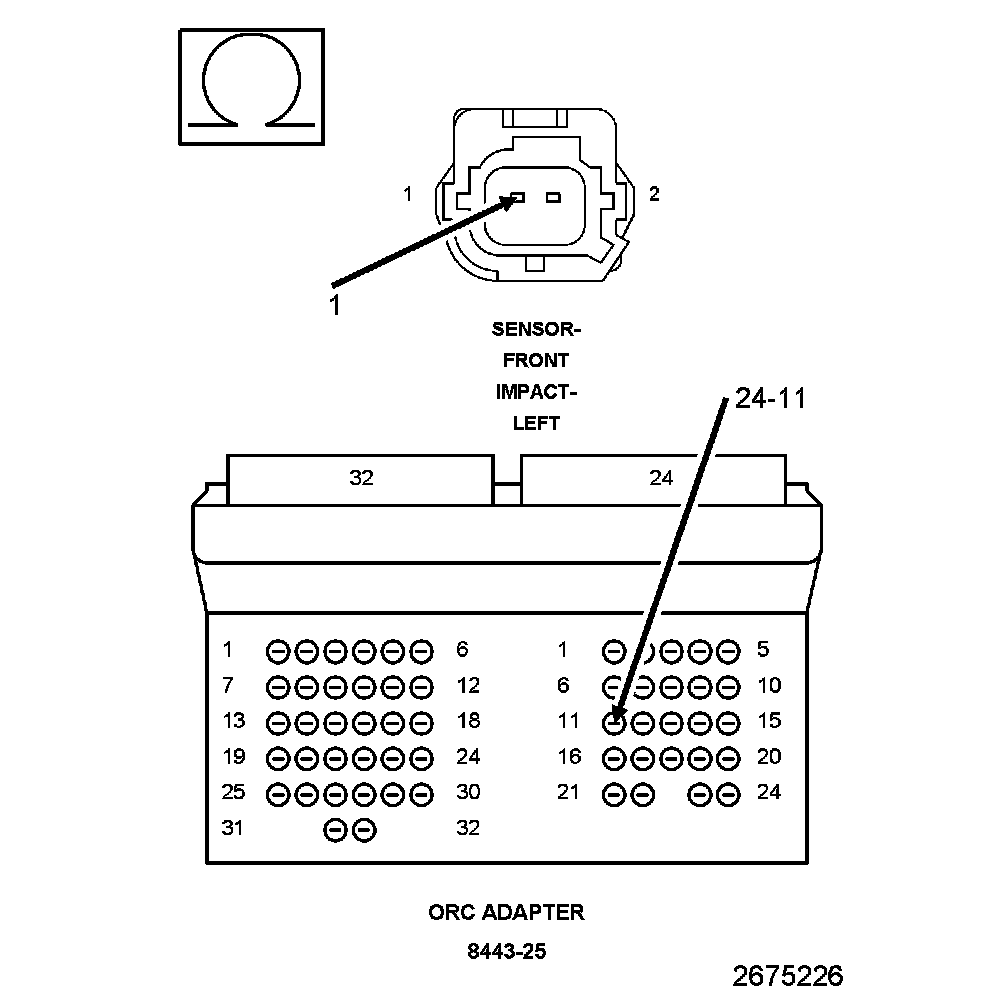

6. CHECK THE (R79) FRONT LEFT IMPACT SENSOR CIRCUIT FOR AN OPEN OR HIGH RESISTANCE




1. Measure the resistance of the (R79) Front Left Impact Sensor Signal circuit between the Front Left Impact Sensor connector and the SRS Load Tool Adaptor 8443-25.

Is the resistance below 1 Ohm?

Yes

- Go To 7

No

- Repair the (R79) Front Left Impact Sensor Signal circuit for an open or high resistance.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

7. CHECK OPERATION OF THE FRONT LEFT IMPACT SENSOR
1. Replace the Front Left Impact Sensor.
2. Reconnect the vehicle body harness to the impact sensor.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

4. Connect the scan tool to the Data Link Connector - use the most current software available.
5. Use the scan tool and erase the stored codes in all airbag system modules.
6. Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
7. Wait one minute, and read active codes and if there are none present read the stored codes.

Did the active Front Left Impact Sensor DTC return?

Yes

- Go To 8

No

- Repair is complete.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

8. REPLACE THE OCCUPANT RESTRAINT CONTROLLER

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the SRS Load Tool Adaptor 8443-25.

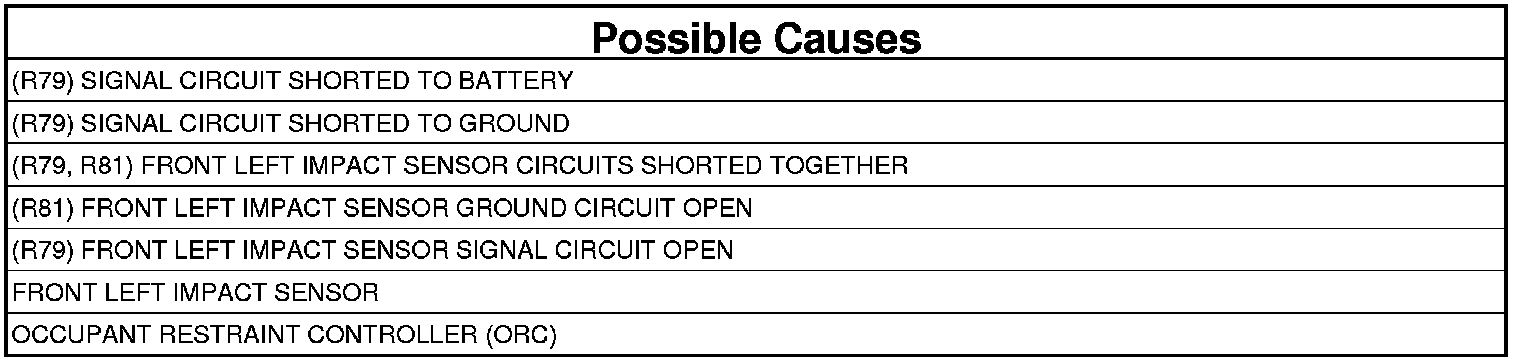

If there are no possible causes remaining, view repair.

Repair

- Replace the Occupant Restraint Controller.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
