P127D

P127D-FUEL PUMP CONTROL CIRCUIT 2 HIGH



- When Monitored:
With the ignition on. Battery voltage greater than 10.4 volts and the Main Relay on. TIPM requesting Fuel Pump operation.

- Set Condition:
Actual Fuel Pump state is not equal to desired state. One Trip Fault. Three good trips to turn off the MIL.





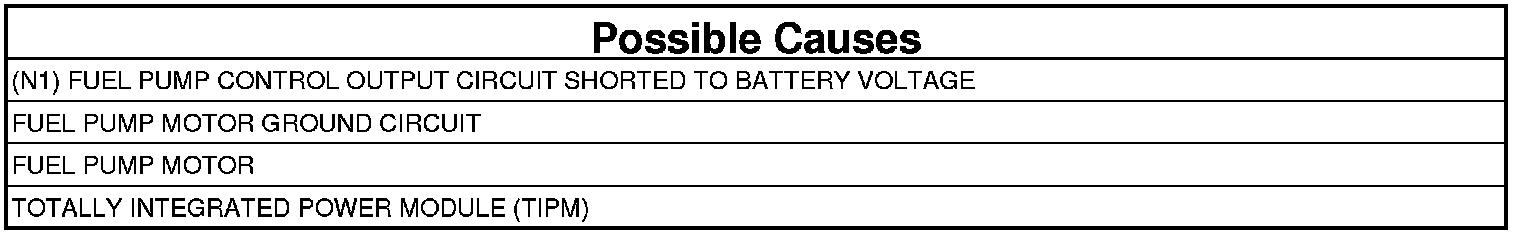

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. DTC IS ACTIVE

NOTE: If P0627, P0628 or P0629 has set along with this DTC, diagnose those DTC(s) first before continuing.

1. Ignition on, engine not running.
2. With the scan tool, select View DTCs.

Is the DTC Active at this time?

Yes

- Go To 2

No

- Refer to the CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. Checking for an Intermittent DTC

2. (N1) FUEL PUMP CONTROL OUTPUT CIRCUIT SHORTED TO BATTERY VOLTAGE
1. Turn the ignition off
2. Disconnect the C7 TIPM harness connector.
3. Turn the ignition on.
4. Using a voltmeter, measure the voltage of the (N1) Fuel Pump Control Output circuit in the C7 TIPM harness connector.

Does the voltmeter indicate voltage present?

Yes

- Repair the short to battery voltage in the (N1) Fuel Pump Control Output circuit.
- Perform the PCM Verification Test. PCM Verification Test

No

- Go To 3

3. FUEL PUMP MOTOR GROUND CIRCUIT
1. Turn the ignition off.
2. Disconnect the Fuel Pump Module harness connector.
3. Using a 12-volt test light to battery voltage, probe the Fuel Pump Motor Ground circuit in the Fuel Pump Module harness connector.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

Does the test light illuminate brightly.

Yes

- Go To 4

No

- Repair the Fuel Pump Motor Ground circuit.
- Perform the PCM Verification Test. PCM Verification Test

4. FUEL PUMP MODULE
1. Connect the C7 TIPM harness connectors.
2. Ignition on, engine not running.
3. Using the scan tool under the TIPM Actuators, actuate (Toggle) the Fuel Pump.
4. With a 12-volt test light connected to ground, probe the (N1) Fuel Pump Control Output circuit at the Fuel Pump Module harness connector.

Does the test light illuminate brightly and flash on and off?

Yes

- Replace the Fuel Pump Module.
- Perform the PCM Verification Test. PCM Verification Test

No

- Go To 5

5. TOTALLY INTEGRATED POWER MODULE

NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

1. Using the schematics as a guide, inspect the wire harness and connectors.
2. Pay particular attention to all Power and Ground circuits.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test. PCM Verification Test

No

- Replace the Totally Integrated Power Module.
- Perform the PCM Verification Test. PCM Verification Test
