C123C
C123C-DYNAMICS SENSOR MOUNTING/INSTALLATION PERFORMANCE
- When Monitored:
With vehicle speed above 7 mph (11 km/h), but not if the sensor signal is invalid.
- Set Condition:
If the Anti-Lock Brake Module detects implausible Dynamics Sensor values.

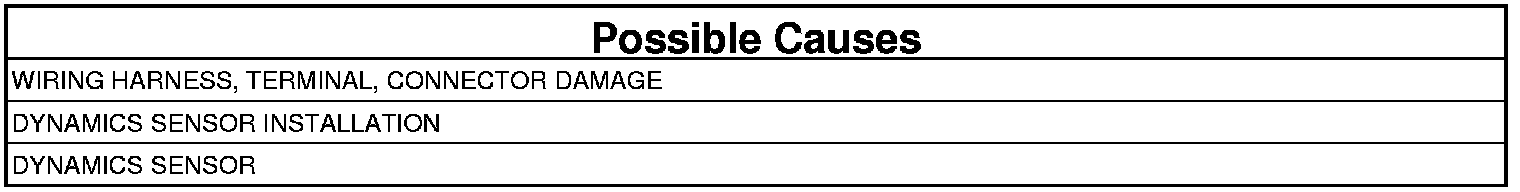

1. VERIFY DTC IS ACTIVE
NOTE: If present, diagnose and repair DTC C2114-DYNAMICS SENSOR SUPPLY VOLTAGE LOW or DTC C2115-DYNAMICS SENSOR SUPPLY VOLTAGE HIGH before diagnosing this DTC.
1. Turn the ignition on.
2. With the scan tool, read and record ABS DTCs.
3. With the scan tool, read and record Environmental Data to help identify the conditions in which the DTC was set.
4. With the scan tool, erase ABS DTCs.
5. Cycle the ignition switch.
WARNING: To avoid possible serious or fatal injury, check brake capability is available before road testing.
6. Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 6 and 12 mph (10 and 20 km/h).
7. Park the vehicle.
8. With the scan tool, read ABS DTCs.
Does this DTC reset?
Yes
- Go To 2
No
- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the ABS INTERMITTENT CONDITION TEST ABS Intermittent Condition Test.
2. CHECK THE DYNAMICS SENSOR INSTALLATION
NOTE: Dynamics Sensor installation and mounting bolt torque is crucial for proper operation.
1. Turn the ignition off.
2. Check the Dynamics Sensor for damaged, modified, and bent mounting brackets.
3. Check the Dynamics Sensor mounting bolts for a loose or over tightened condition.
Were any problems found?
Yes
- Repair as necessary.
- Perform ABS VERIFICATION TEST ABS Verification Test.
No
- Go To 3
3. INSPECT RELATED WIRING HARNESS, TERMINALS, AND CONNECTORS
1. Visually inspect the related wiring harness. Look for any pinched, chafed, pierced, and partially broken wires.
2. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, and corroded terminals.
Were any problems found?
Yes
- Repair as necessary.
- Perform ABS VERIFICATION TEST ABS Verification Test.
No
- Replace the Dynamics Sensor.
- Perform ABS VERIFICATION TEST ABS Verification Test.
