C123B

C123B-ESP SYSTEM CONTROL TOO LONG



- When Monitored:
With the ignition on.

- Set Condition:
When the Anti-Lock Brake Module indicates ESP control lasting longer the 15 seconds.





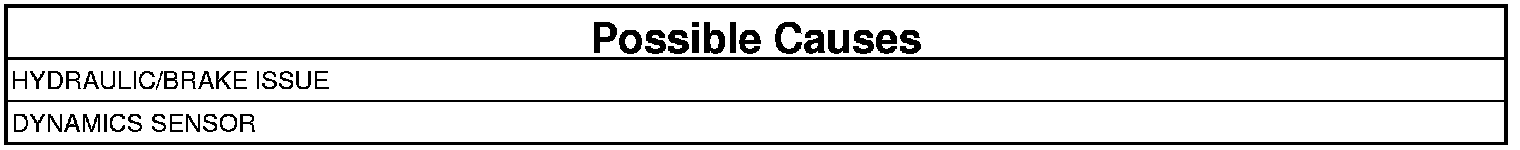

1. VERIFY DTC IS ACTIVE

NOTE: If other DTCs.are set they must be repaired before continuing. This DTC must be active for the results of this test to be valid and this DTC may set while driving under excessive driving conditions.

1. Turn the ignition on.
2. With the scan tool, read and record ABS DTCs.
3. With the scan tool, read and record Environmental Data to help identify the conditions in which the DTC was set.
4. With the scan tool, erase ABS DTCs.
5. Cycle the ignition switch.

WARNING: To avoid possible serious or fatal injury, check brake capability is available before road testing.

6. Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and 20 km/h (6 and 12 mph).
7. Park the vehicle.
8. With the scan tool, read ABS DTCs.

Does this DTC reset?

Yes

- Go To 2

No

- Perform the ABS-INTERMITTENT CONDITION TEST ABS Intermittent Condition Test.

2. CHECK HYDRAULIC SYSTEM AND BRAKE SYSTEM COMPONENT INSTALLATION AND FUNCTION
1. Verify that the Anti-Lock Brake Module and Hydraulic Control Unit are properly installed.
2. Verify that the hydraulic system is properly filled and bled.
3. Verify that the brake system components are installed and functioning properly.

Were any problems found?

Yes

- Repair as necessary.
- Perform ABS VERIFICATION TEST ABS Verification Test.

No

- Replace the Dynamics Sensor.
- Perform ABS VERIFICATION TEST ABS Verification Test.
