C1221

C1221-BRAKE PRESSURE SENSOR/ACCEL PEDAL POSITION SENSOR CORRELATION



- When Monitored:
With the ignition on.

- Set Condition:
When the Anti-Lock Brake Module indicates that the Brake Pressure Sensor output signal is not plausible.





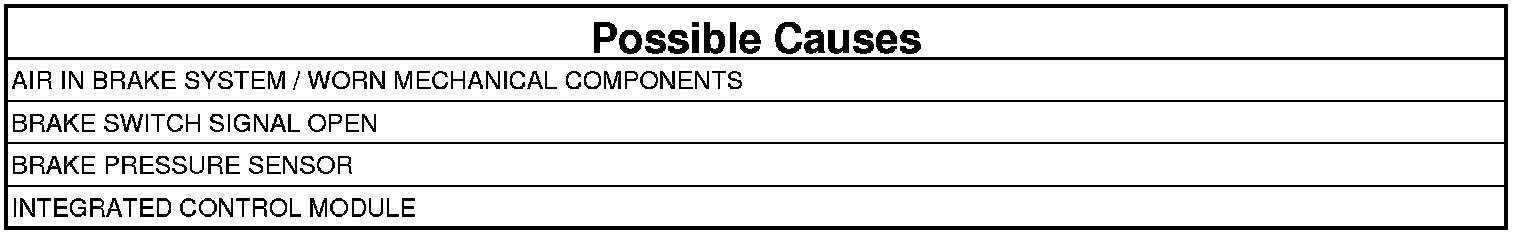

1. CHECK FOR A DTC C1221-BRAKE PRESSURE SENSOR/ACCEL PEDAL POSITION SENSOR CORRELATION
1. Turn the ignition on.
2. With the scan tool, read and record DTCs.
3. With the scan tool, read and record Environmental Data to help identify the conditions in which the DTC was set.
4. With the scan tool, erase DTCs.
5. Start the engine.
6. Depress and release the brake pedal.
7. With the scan tool, read and record DTCs.

Does the scan tool display: C1221-BRAKE PRESSURE SENSOR/ACCEL PEDAL POSITION SENSOR CORRELATION?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the ABS-INTERMITTENT CONDITION TEST ABS Intermittent Condition Test.

2. CHECK BRAKE SWITCH
1. With the scan tool look at the Brake Switch Signal.
2. Apply the brakes on and off while checking for a Brake Switch Signal change.

Did the Brake Switch Signal change?

Yes

- Go To 3

No

- Repair as needed.

3. CHECK BRAKE PRESSURE SENSOR
1. With the scan tool look at Pressure Sensor Signal and the Brake Switch Signal.
2. With the brakes not applied the Pressure Sensor should read ± 15 bar (218 psi).
3. Apply the brakes the Pressure Sensor should read above 15 bar (218 psi).

Did Brake Pressure Sensor increase above 15 bar (218 psi)?

Yes

- Replace the Integrated Control Unit.
- Perform ABS VERIFICATION TEST ABS Verification Test.

No

- Go To 4

4. CHECK FOR AIR IN BRAKE SYSTEM

NOTE: Before continuing the brake system must be bled to verify there is no air in the brake system.

1. Turn ignition off.
2. Bleed brake system.
3. Check worn mechanical components.

Was there any air in the brake system or worn mechanical components?

Yes

- Repair as needed.
- Perform ABS VERIFICATION TEST ABS Verification Test.

No

- Replace the Integrated Control Unit.
- Perform ABS VERIFICATION TEST ABS Verification Test.
