C1078

C1078-TIRE REVOLUTIONS RANGE PERFORMANCE



- When Monitored:
Continuous.

- Set Condition:
Programmed value for tire size is not within acceptable range.

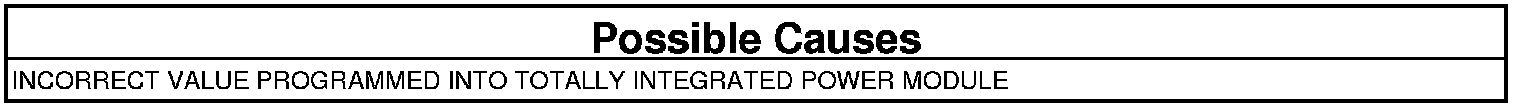

INCORRECT VALUE PROGRAMMED INTO TIPM





1. Verify the correct tire/wheel information is programmed in the TIPM.

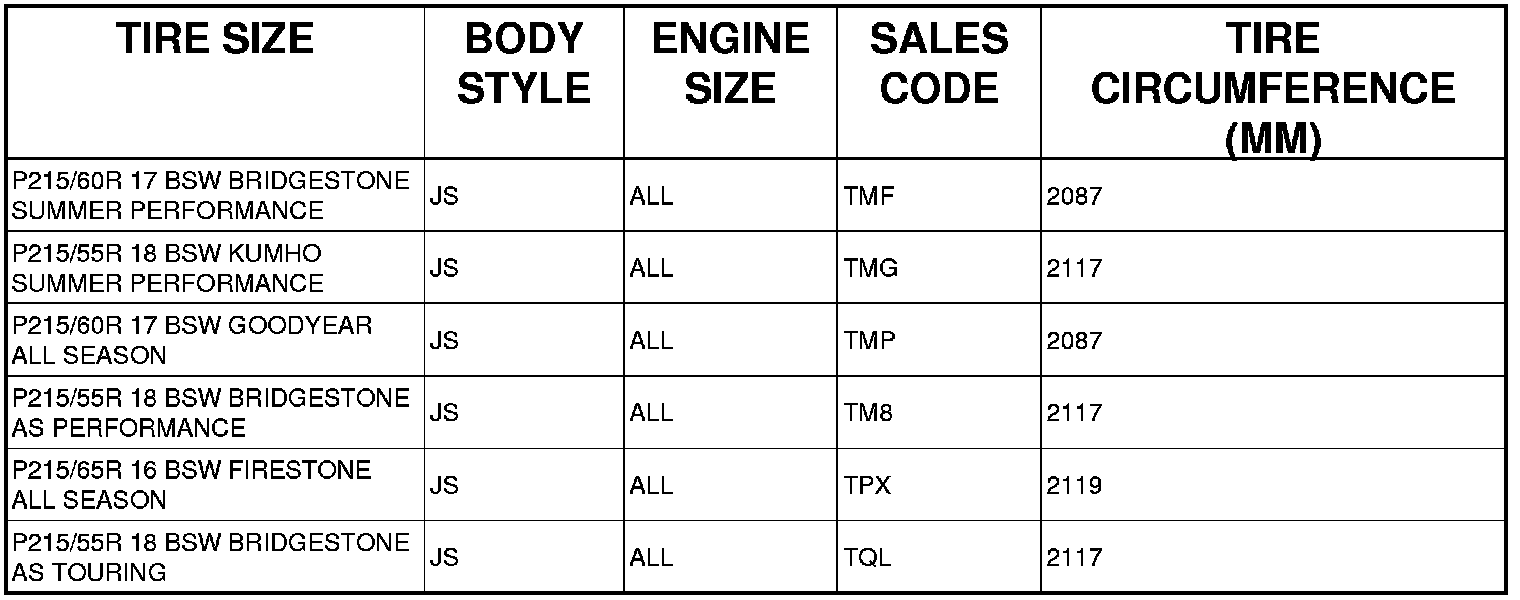

Is the correct value programmed in the TIPM according to the chart?

Yes

- Test complete.
- Perform ABS VERIFICATION TEST. ABS Verification Test.

No

- Program the correct Tire/Wheel information in the TIPM.
- Perform ABS VERIFICATION TEST. ABS Verification Test.
