C1049

C1049-RIGHT REAR WHEEL PRESSURE PHASE MONITORING



- When Monitored:
During active ABS control.

- Set Condition:
When the Anti-Lock Brakes Module detects a pressure reduction phase and the following pressure hold phase is too long.





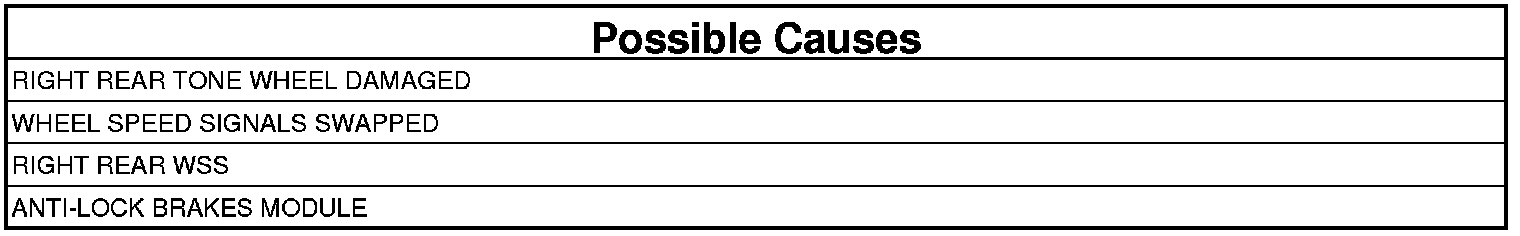

1. COMPARE WHEEL SPEED SENSOR SIGNALS

WARNING: Make sure brake capability is available before road testing.

1. With the scan tool, monitor ALL the WSS speeds while an assistant drives the vehicle.
2. Slowly accelerate as straight as possible from a stop to 40 km/h (25 mph).

Does the Right Rear WSS speed differ from the other WSS speeds by 8 km/h (5 mph) or show NO speed?

Yes

- Go To 3

No

- Go To 2

2. CHECKING INSIDE WHEEL SPEED
1. Slowly accelerate as straight as possible from a stop to 40 km/h (25 mph) and perform a 90 degree turn while monitoring if inside wheel is slower than outside.

Was the inside wheel slower than outside?

Yes

- Perform ABS INTERMITTENT CONDITION diagnostic procedure, ABS Intermittent Condition Test.

No

- Go To 3

3. INSPECT TONE WHEEL/BEARING
1. Turn the ignition off.
2. Visually inspect the tone wheel and bearing for damage.
- Check the tone wheel teeth for missing teeth, cracks, and looseness. The teeth must be perfectly square, not bent, or nicked. Check the wheel bearing for worn/looseness.

Were any problems found?

Yes

- Repair as necessary.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Go To 4

4. CHECK WHEEL SPEED SENSOR WIRING
1. Check the Anti-Lock Brakes Module and Wheel Speed Sensors harness connectors for incorrectly wired connectors.

Were any problems found?

Yes

- Repair as necessary.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Go To 5

5. RIGHT REAR WHEEL SPEED SENSOR
1. Replace the Right Rear Wheel Speed Sensor.
2. Perform the ABS VERIFICATION TEST. ABS Verification Test.

CAUTION: Make sure brake capability is available before road testing.

3. Road test the vehicle over 40 km/h (25 mph).

NOTE: Vehicle must be driven above 40 km/h (25 mph) for set conditions to be met.

4. With the scan tool, read ABS DTCs.

NOTE: The Anti-Lock Brake Module must sense ALL 4 wheels at 12 km/h (7.5 mph) before it will extinguish the ABS indicators.

Did DTC C1049-RIGHT REAR WHEEL PRESSURE PHASE MONITORING reset?

Yes

- Replace the Anti-Lock Brakes Module.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Test Complete.
