B2325

B2325-HEADLAMP WASHER MOTOR CONTROL CIRCUIT OPEN







- When Monitored:
With the ignition on.

- Set Condition:
When the Totally Integrated Power Module (TIPM) detects an open condition in the headlamp washer motor control circuit.

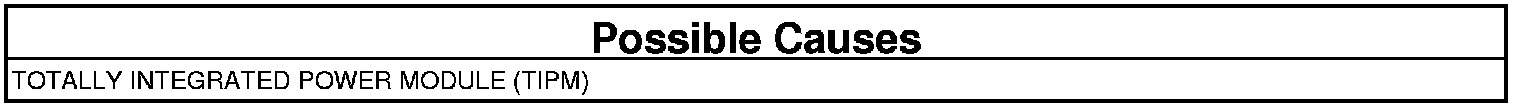

1. TOTALLY INTEGRATED POWER MODULE (TIPM)
1. Turn the ignition off.
2. Replace the Wiper ON/OFF relay with and known good relay.
3. With the scan tool, clear all TIPM DTCs.
4. Turn the Wipers ON then OFF.
5. With the scan tool, read the Wiper DTCs.

Does the scan tool read: B2325-HEADLAMP WASHER MOTOR CONTROL CIRCUIT OPEN?

Yes

- Go To 2

No

- The conditions that originally set this DTC are not present at this time.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

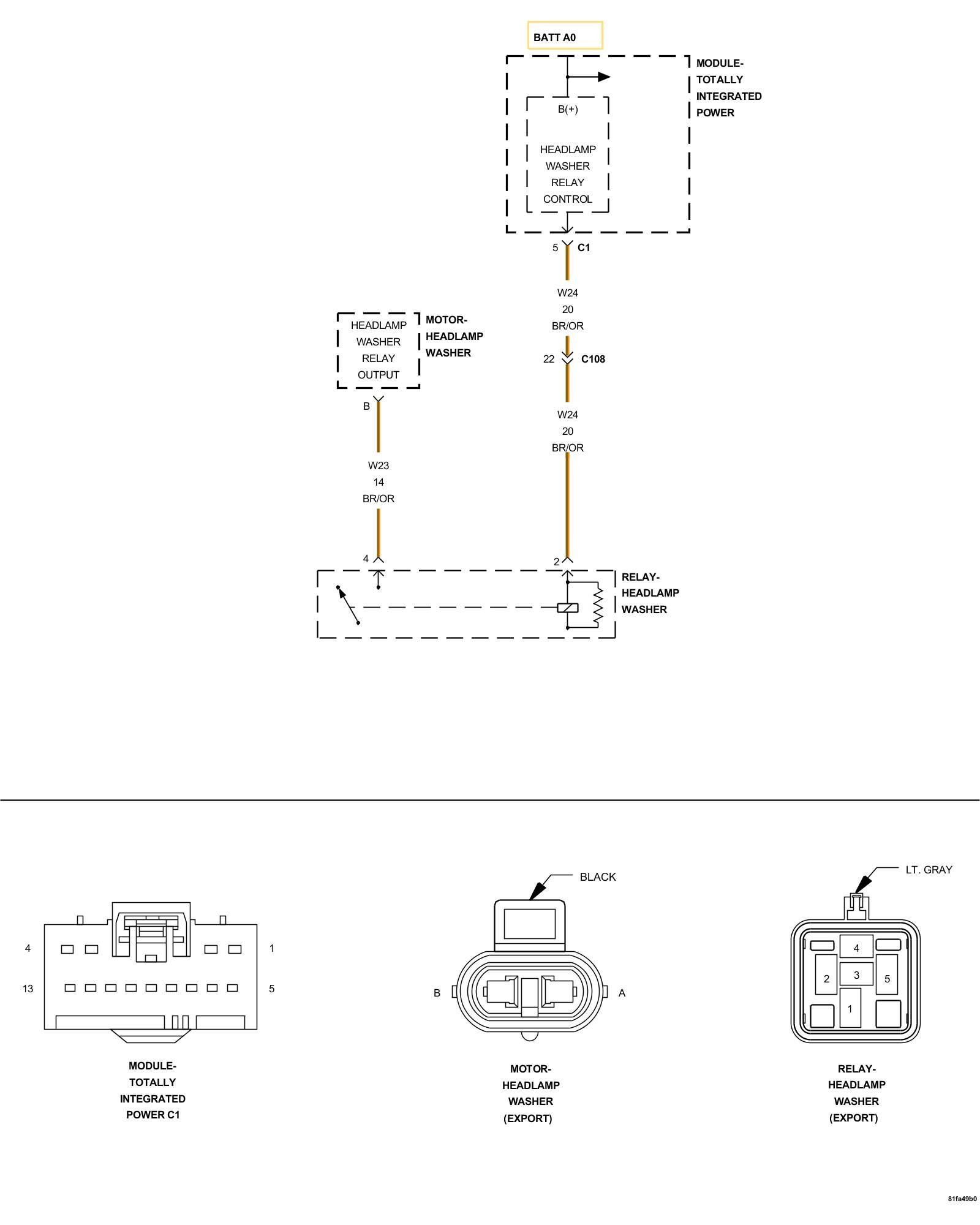

2. (W24) HEADLAMP WASHER RELAY CONTROL CIRCUIT OPEN




1. Turn the ignition off.
2. Disconnect the TIPM C1 harness connector.
3. Measure the resistance of the (W24) Headlamp Washer Relay Control circuit between the Headlamp Washer Relay connector and the TIPM C1 harness connector.

Is the resistance below 10.0 Ohms?

Yes

- Replace the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the (W24) Headlamp Washer Relay Control circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
