Totally Integrated Power Module (TIPM)

B2206-CURRENT VIN MISSING/MISMATCH



- When Monitored:
With the ignition on.

- Set Condition:
The Totally Integrated Power Module (TIPM) will set this code if the Vehicle Identification Number (VIN) stored in the TIPM does not match the VIN message on the CAN C Bus.





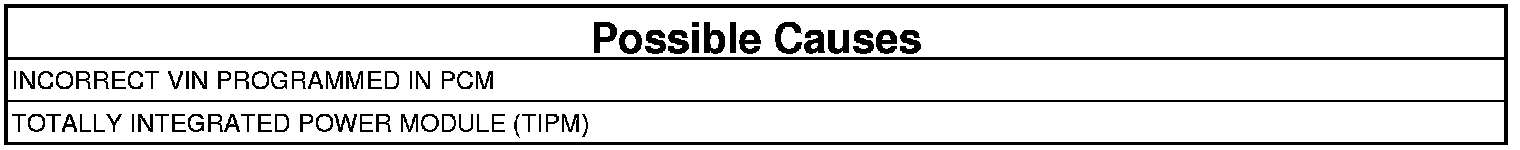

1. CHECK FOR ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)
1. Using the scan tool, read the active DTCs.
2. Cycle the ignition switch from off to on at least five times, leaving the ignition on for a minimum of 90 seconds per cycle.
3. Using the scan tool, read the active DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out or corroded terminals.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CONFIGURE THE TIPM TO THE VEHICLE
1. With the scan tool enter program network configuration and program the TIPM to the vehicle configuration.
2. Using the scan tool, erase TIPM DTCs.
3. Cycle the ignition switch from off to on at least five times, leaving the ignition on for a minimum of 90 seconds per cycle.
4. Using the scan tool, read the active DTCs.

Does the scan tool display this DTC as active?

Yes

- Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Totally Integrated Power Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair is complete.
