B2201

B2201-CALIBRATION MISMATCH

- When Monitored:
With the Ignition on.

- Set Condition:

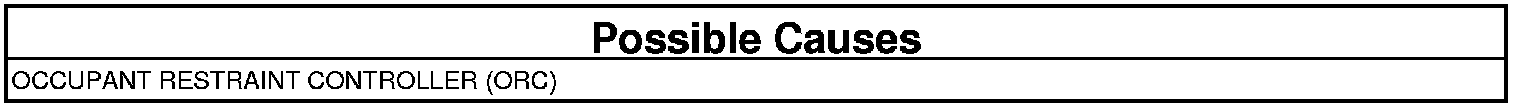

This DTC will be set when the VIN stored in the PCM does not match the VIN stored in the Occupant Restraint Controller (ORC). The ORC does not support a stored B2201 DTC.





1. VERIFY THAT DTC B2201-CALIBRATION MISMATCH IS ACTIVE
1. Turn the ignition on.
2. With the scan tool, read ORC DTCs.

NOTE: Ensure the battery is fully charged.

Does the scan tool display active: B2201-CALIBRATION MISMATCH?

Yes

- Go To 2

No

- Test Complete.

2. REPLACE THE OCCUPANT RESTRAINT CONTROLLER

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

View repair.

Repair

- Replace the ORC.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test
