B1B2A

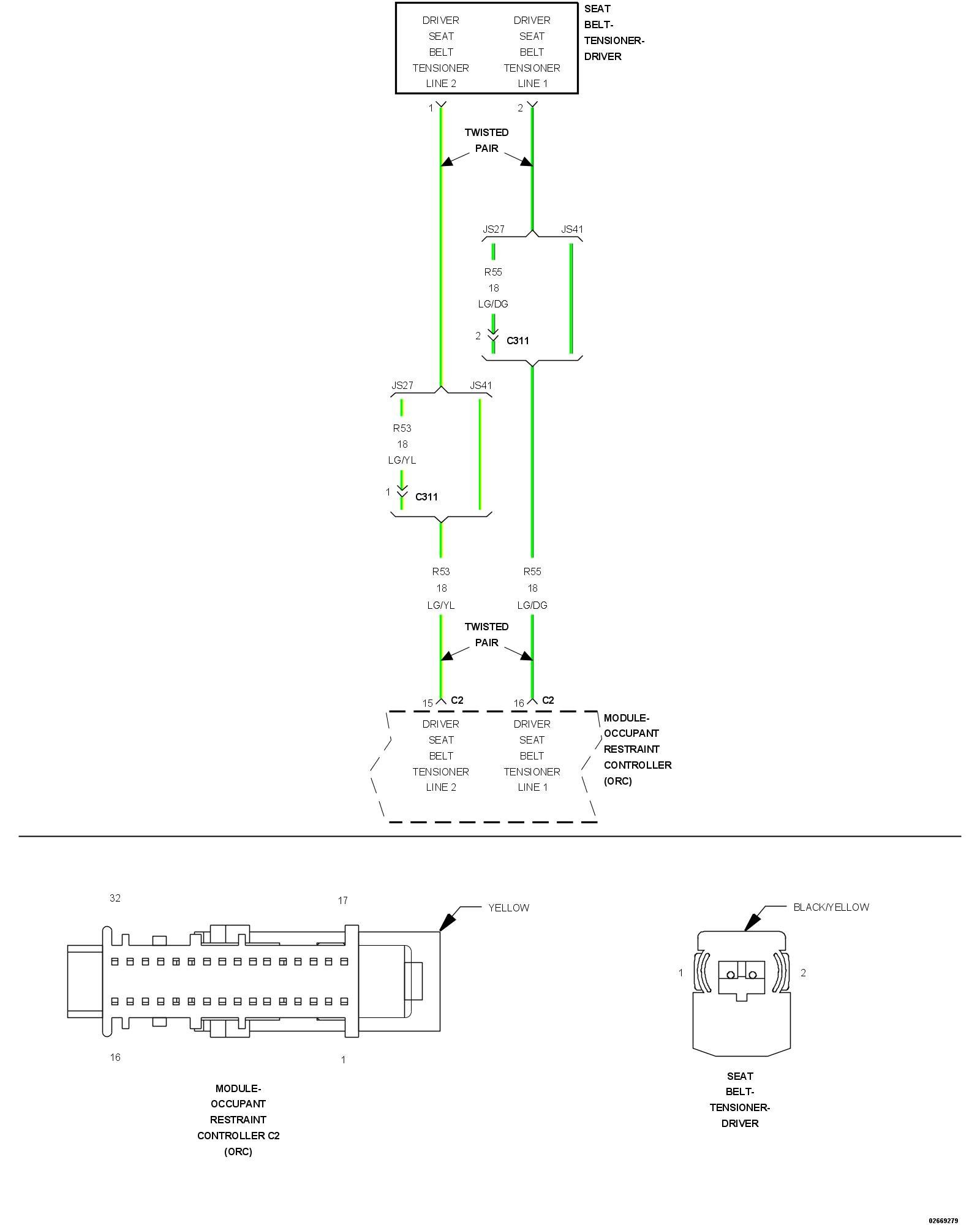

B1B2A-1st ROW DRIVER SEAT BELT PRETENSIONER CIRCUIT OPEN







- When Monitored:
With the ignition on.

- Set Condition:
The Occupant Restraint Controller (ORC) monitors the resistance of the Driver Seat Belt Tensioner circuits. The ORC will set this DTC if it detects an open or high resistance on the Driver Seat Belt Tensioner circuits.





1. DETERMINE ACTIVE OR STORED DTC

NOTE: Make sure that the battery is fully charged.

NOTE: The scan tool, SRS Load Tool Kit 8443A, and DVOM are required to perform the following test.

1. Turn the ignition on.

SELECT ACTIVE or STORED DTC:

ACTIVE DTC

- Go To 2

STORED DTC

- Perform the AIRBAG SYSTEM INTERMITTENT TEST. Initial Inspection and Diagnostic Overview.

2. CHECK FOR OPEN DRIVER SEAT BELT PRETENSIONER





WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Driver Seat Belt Pretensioner connector.

NOTE: Check connectors - Clean and repair as necessary.

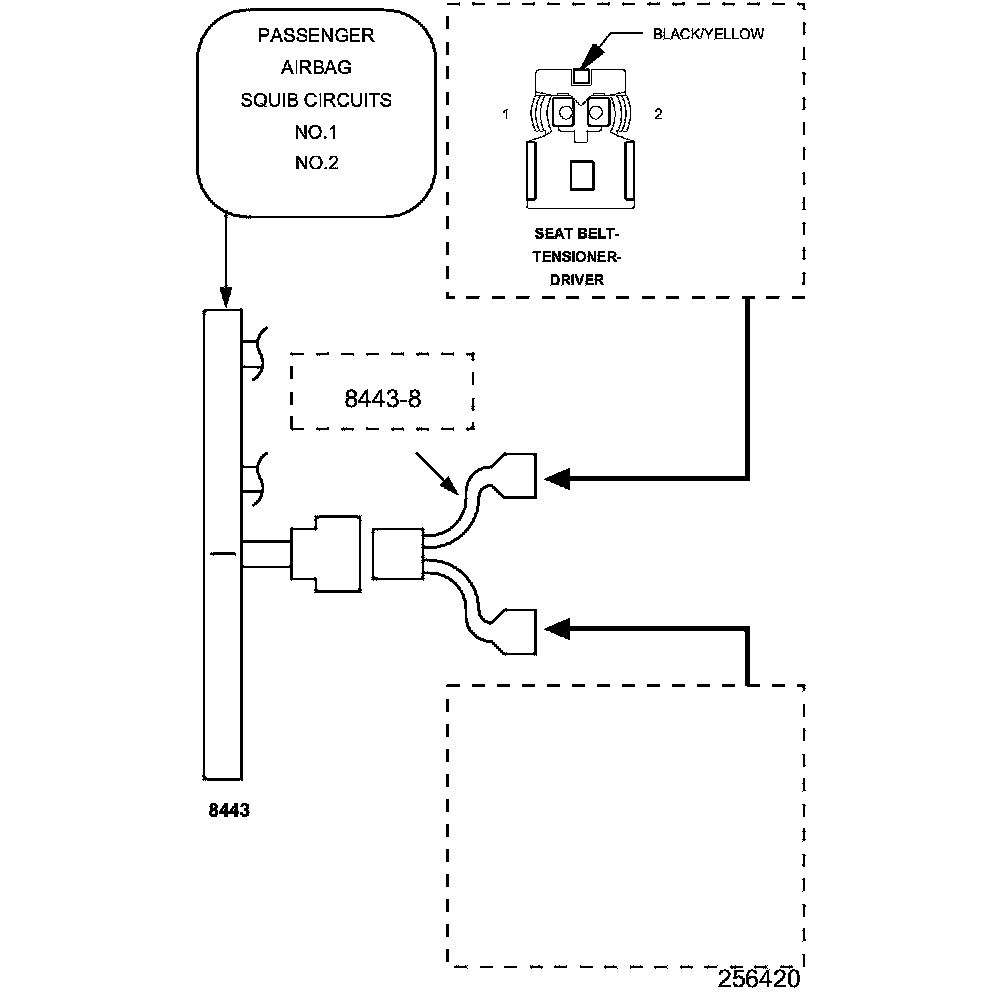

2. Connect the SRS Load Tool Kit 8443A and SRS Load Tool Jumper 8443-8 to the Driver Seat Belt Pretensioner connector.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

3. With the scan tool, read the active ORC DTCs.

Does the scan tool display: B1B2A-1st ROW DRIVER SEAT BELT PRETENSIONER CIRCUIT OPEN?

Yes

- Go To 3

No

- Replace the Driver Seat Belt Pretensioner.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

3. CHECK (R55) DRIVER SEAT BELT TENSIONER LINE 1 CIRCUIT FOR AN OPEN





WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the 8443A Load Tool and Jumper from the Driver Seat Belt Pretensioner connector.
2. Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.

3. Connect the 8443-25 ORC Adaptor to the ORC C1 connector.
4. Measure the resistance of the (R55) Driver Seat Belt Tensioner Line 1 circuit between the Driver Seat Belt Pretensioner connector cavity 2 and the SRS Load Tool Adapter 8443-25 cavity 32-16.

Is the resistance below 1.0 Ohm?

Yes

- Go To 4

No

- Repair the open (R55) Driver Seat Belt Tensioner Line 1 circuit.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

4. CHECK (R53) DRIVER SEAT BELT TENSIONER LINE 2 CIRCUIT FOR AN OPEN

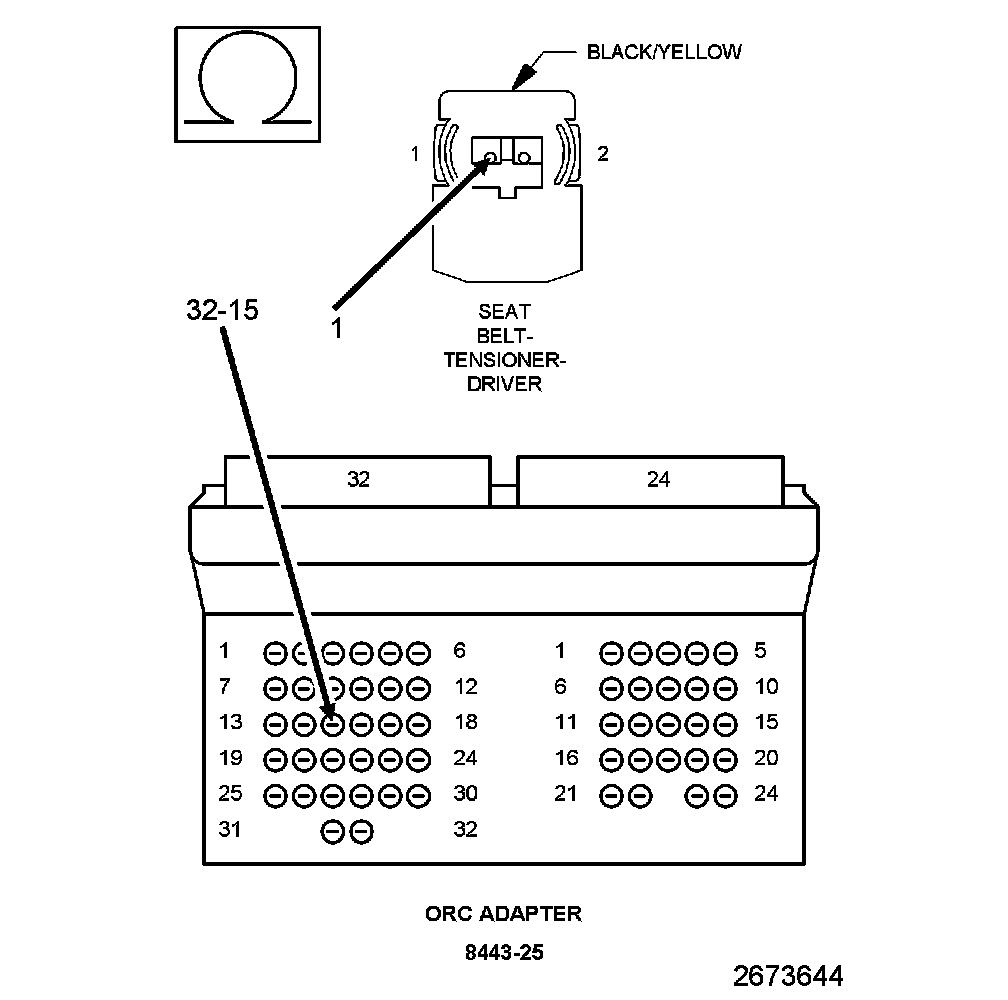

1. Measure the resistance of the (R53) Driver Seat Belt Tensioner Line 2 circuit between the Driver Seat Belt Pretensioner connector cavity 1 and the SRS Load Tool Adapter 8443-25 cavity 32-15.

Is the resistance below 1.0 Ohm?

Yes

- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the ORC.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- Repair the open (R53) Driver Seat Belt Tensioner Line 2 circuit.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
