B1B08

B1B08-PASSENGER AIRBAG SQUIB 1 CIRCUIT LOW







- When Monitored:
With the ignition on.

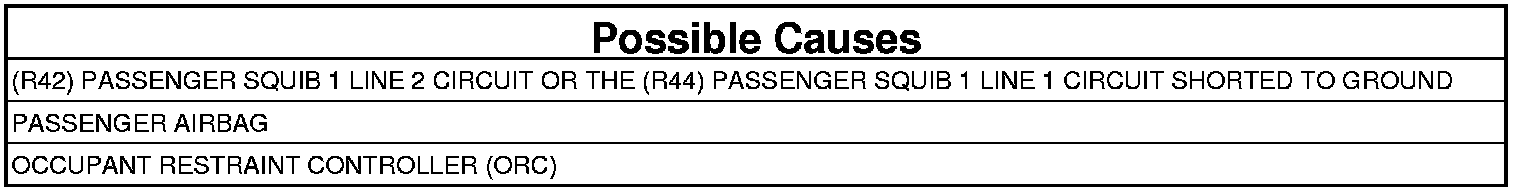

- Set Condition:
The Occupant Restraint Controller (ORC) monitors the resistance of the Passenger Squib 1 circuits. The ORC will set this DTC if it detects low resistance on the Passenger Squib 1 circuits.





1. DETERMINE ACTIVE OR STORED DTC

NOTE: Make sure that the battery is fully charged.

NOTE: The scan tool, SRS Load Tool Kit 8443A, and DVOM are required to perform the following test.

1. Turn the ignition on.

Select ACTIVE or STORED DTC:

ACTIVE DTC

- Go To 2

STORED DTC

- Perform the AIRBAG SYSTEM INTERMITTENT TEST. Initial Inspection and Diagnostic Overview.

2. CHECK FOR SHORTED SQUIB CIRCUITS IN PASSENGER AIRBAG





WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Passenger Airbag Squib connectors.

WARNING: Do not place an intact non-deployed airbag face down on a hard surface, the airbag propels into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.

NOTE: Check connectors - Clean and repair as necessary.

2. Connect the SRS Load Tool Kit 8443A and SRS Load Tool Jumper 8443-8 to the Passenger Airbag Squib connectors.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

3. With the scan tool, read the active ORC DTCs.

Does the scan tool display: B1B08-PASSENGER AIRBAG SQUIB 1 CIRCUIT LOW?

Yes

- Go To 3

No

- Replace the Passenger Airbag.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

3. CHECK (R42) PASSENGER SQUIB 1 LINE 2 CIRCUIT AND (R44) PASSENGER SQUIB 1 LINE 1 CIRCUIT FOR A SHORT TO GROUND





WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the SRS Load Tool Kit 8443A from the Passenger Airbag Squib connector.
2. Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.

3. Connect the SRS Load Tool 8443-25 to the ORC connectors.

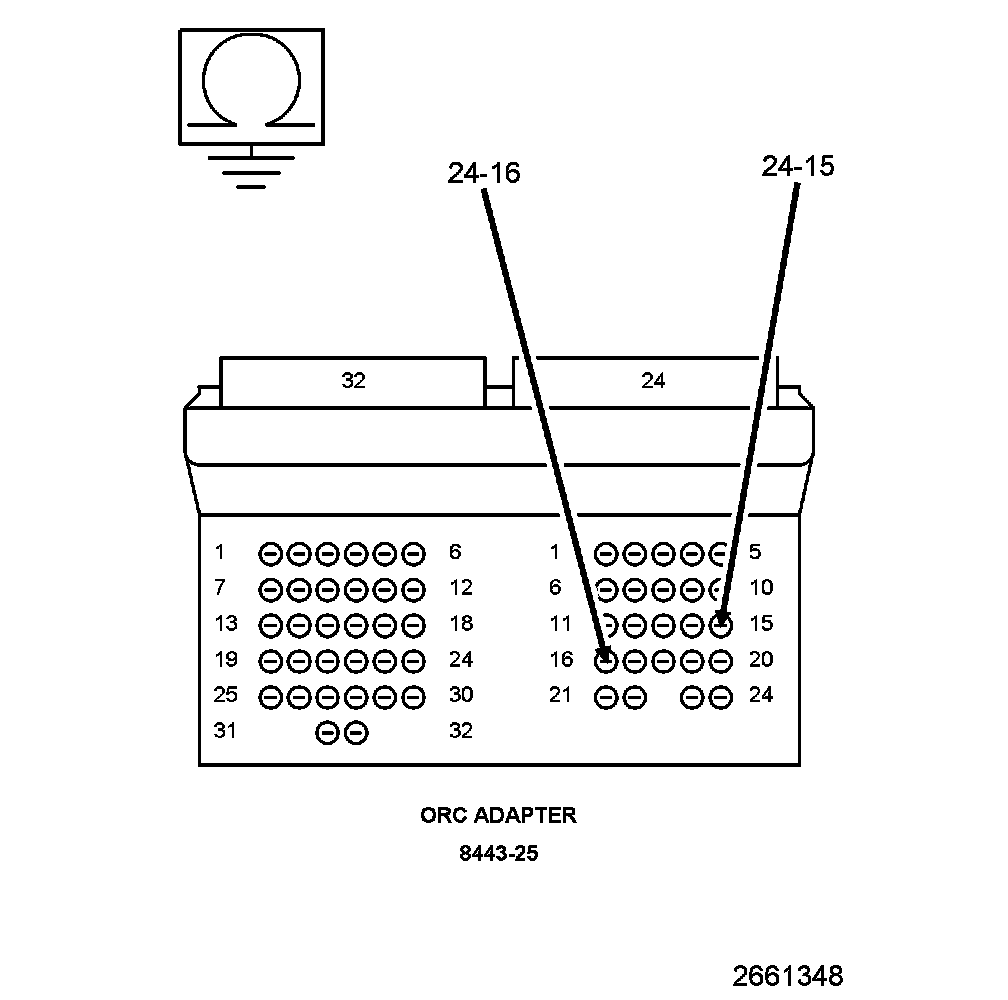

4. Measure the resistance of the (R42) Passenger Squib 1 Line 2 circuit between the SRS Load Tool Adaptor 8443-25 cavity 24-16 and ground.
5. Measure the resistance of the (R44) Passenger Squib 1 Line 1 circuit between the SRS Load Tool Adaptor 8443-25 cavity 24-15 and ground.

Is the resistance below 10k Ohms on either circuit?

Yes

- Repair the Passenger Squib 1 circuits with resistance below 10k Ohms for a short to ground.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.

No

- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the ORC.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test.
