B1A24

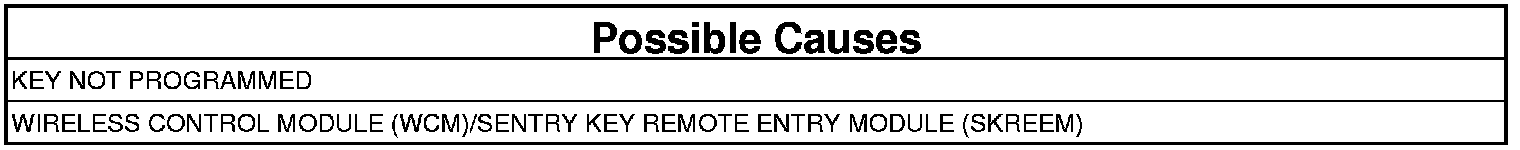

B1A24-KEY NOT PROGRAMMED



- When Monitored:
With the ignition on.





PROGRAM ALL OF THE IGNITION KEYS
1. Turn the ignition on.
2. With the scan tool, attempt to program the key(s) into the WCM/SKREEM.

Was the programming of the key(s) successful?

Yes

- Perform the WCM VERIFICATION TEST. Wireless Control Module (WCM) Verification Test

No

- Replace the ignition key and attempt to program it into the WCM/SKREEM. If the DTC resets, replace and program the Wireless Control Module Module (WCM/SKREEM).NOTE: If this vehicle is equipped with a Steering Column Lock Module, it must be replaced along with the WCM.

- Perform the WCM VERIFICATION TEST. Wireless Control Module (WCM) Verification Test
