B192D

B192D-RIGHT REAR WINDOW CONTROL CIRCUIT OPEN OR HARDWARE THERMO PROTECTION ACTIVE







- When Monitored:
Whenever the Right Rear Window Motor is commanded to move.

- Set Condition:
When the Right Rear Window Motor is given a command to move but there is no current draw on the window driver circuits for over 100ms, this code will set.





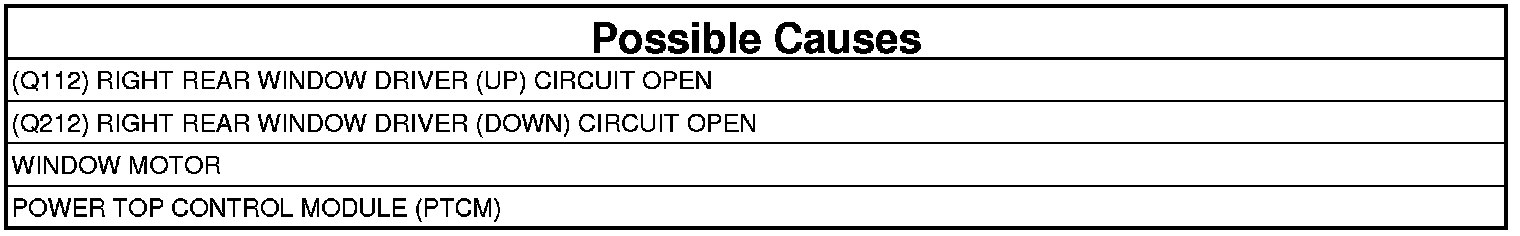

Always perform the Power Top System Pre-Diagnostic procedure before proceeding. Power Top System Pre-Diagnostic Procedure.

1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Operate the right rear window to the full up and down positions several times (if possible).
4. With the scan tool, read DTCs.

Does the scan tool display B192D-RIGHT REAR WINDOW CONTROL CIRCUIT OPEN OR HARDWARE THERMO PROTECTION ACTIVE?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. With the scan tool, check the Environmental Data to help identify the conditions in which the DTC was set. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. RIGHT REAR WINDOW MOTOR OVERHEATED
1. Turn the ignition off.
2. Wait five minutes to allow the motor to cool down.
3. Operate the right rear window to the full up and down positions several times (if possible).

Does the motor operate properly?

Yes

- Test complete. If the motor continues to set this DTC, replace the motor.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

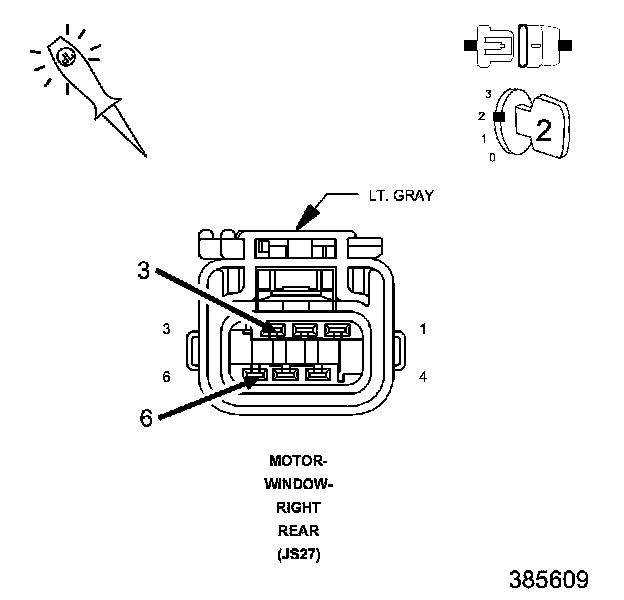

3. WINDOW MOTOR OPEN




1. Disconnect the Right Rear Window Motor connector.
2. Using a 12-volt test light, connect one end to the (Q112) Right Rear Window Driver (Up) circuit in the motor connector.
3. Connect the other end of the 12-volt test light to the (Q212) Right Rear Window Driver (Down) circuit in the motor connector.
4. Turn the ignition on.
5. Operate the motor in both directions from the switch several times while observing the test light.

Does the test light BLINK each time the switch is pressed in either direction?

Yes

- Replace the Window Motor.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 4

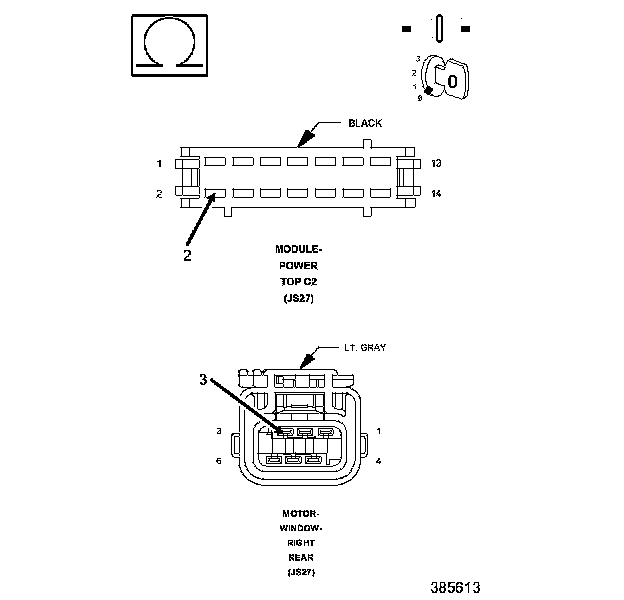

4. (Q112) RIGHT REAR WINDOW DRIVER (UP) CIRCUIT OPEN




1. Turn the ignition off.
2. Disconnect the Power Top Control Module C2 connector.
3. Measure the resistance of the (Q112) Right Rear Window Driver (Up) circuit between the PTCM C2 connector and the Motor connector.

Is the resistance below 5.0 Ohms?

No

- Repair the (Q112) Right Rear Window Driver (Up) circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

Yes

- Go To 5

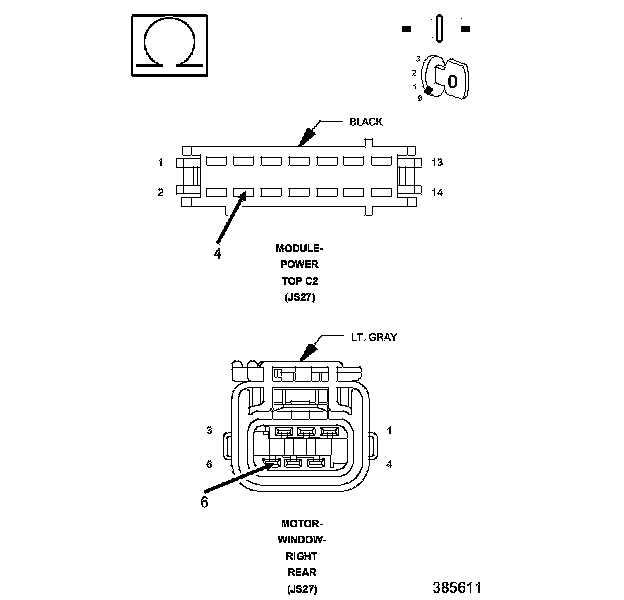

5. (Q212) RIGHT REAR WINDOW DRIVER (DOWN) CIRCUIT OPEN




1. Measure the resistance of the (Q212) Right Rear Window Driver (Down) circuit between the PTCM C2 connector and the Motor connector.

Is the resistance below 5.0 Ohms?

No

- Repair the (Q212) Right Rear Window Driver (Down) circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

Yes

- Replace the Power Top Control Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
