B142D

B142D-AUDIO ANTENNA NOT CONNECTED



- When Monitored:
With the ignition on and the Radio in seek mode.

- Set Condition:
With the Radio in seek mode for two loops around the band. The Radio does not detect an Antenna connection or does not receive a Radio station signal.





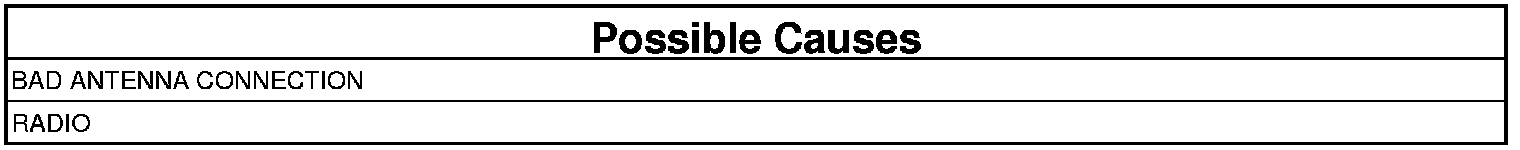

1. TEST ANTENNA
1. Turn the ignition off.
2. Disconnect the Radio Antenna connector.
3. Inspect the Radio Antenna connection.

Was the Antenna connection clean and secure?

Yes

- Go To 2

No

- Repair the Antenna connection as needed.
- Perform the BODY VERIFICATION TEST. Body Verification Test

2. ANTENNA
1. Refer to the Audio System in the Service Information and test the antenna.

Is the Antenna ok?

Yes

- Go To 3

No

- Repair or replace the Antenna assembly.
- Perform the BODY VERIFICATION TEST. Body Verification Test

3. RADIO

NOTE: Reconnect all previously disconnected components.

NOTE: Move vehicle outside approximately 30ft (9.14m) from any structure.

1. Turn the ignition on.
2. Turn the Radio on.
3. With the scan tool, clear all DTC's, put the Radio in seek up and down mode for 2 loops around the band cycle before proceeding.
4. With the scan tool, read DTC's.

Does the scan tool display active: B142D-AUDIO ANTENNA NOT CONNECTED?

Yes

- Replace the Radio.
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- Test Complete.
