B140E

B140E-REAR RIGHT AUDIO SPEAKER OUTPUT CIRCUIT HIGH












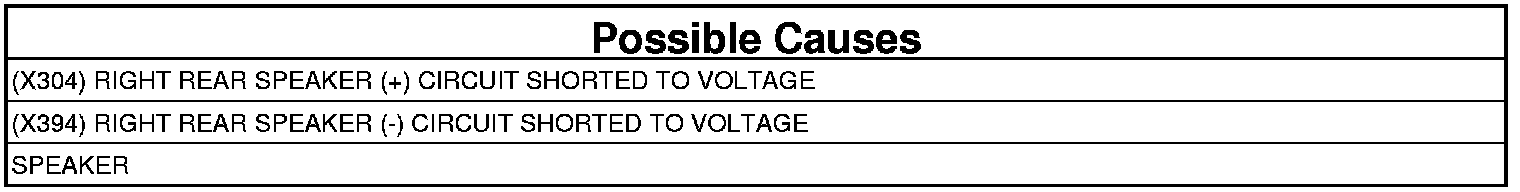

1. INTERMITTENT CONDITION
1. Turn the ignition on, then off, and then on again.
2. With the scan tool, read Radio DTCs.

Does the scan tool display active: B140E-REAR RIGHT AUDIO SPEAKER OUTPUT CIRCUIT HIGH?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. (X304) RIGHT REAR SPEAKER (+) CIRCUIT SHORTED TO VOLTAGE




1. Turn the ignition off.
2. Disconnect the Radio harness connector.
3. Disconnect the Right Rear Audio Speaker harness connector.
4. Turn the ignition on.

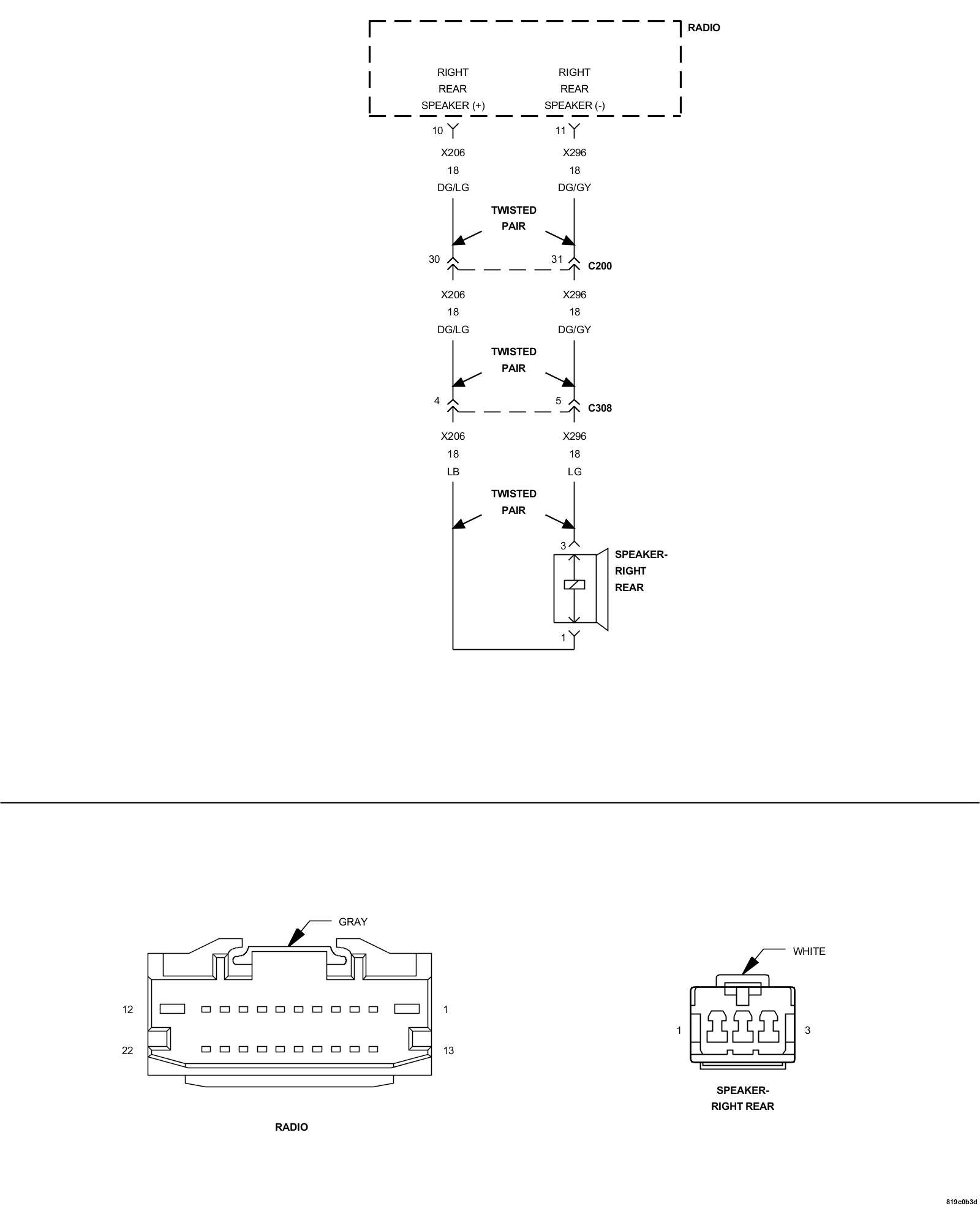

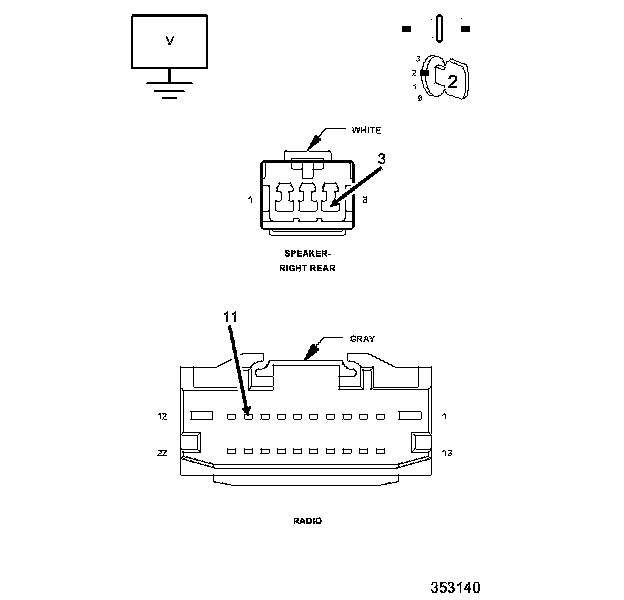

5. Measure for voltage on the (X304) Right Rear Speaker (+) circuit.

Is the voltage above 10.0 volts?

Yes

- Repair the (X304) Right Rear Speaker (+) circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

3. (X394) RIGHT REAR SPEAKER (-) CIRCUIT SHORTED TO VOLTAGE




1. Measure for voltage on the (X394) Right Rear Speaker (-) circuit.

Is the voltage above 10.0 volts?

Yes

- Repair the (X394) Right Rear Speaker (-) circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Radio.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
