B123F

B123F-MENU SWITCH STUCK



- When Monitored:
With the ignition on.

- Set Condition:
The Cluster detects the Menu Switch active for greater than 20 seconds.





CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Press the MENU switch three times.
4. With the scan tool, read DTCs.

Does the scan tool display: B123F-MENU SWITCH STUCK?

Yes

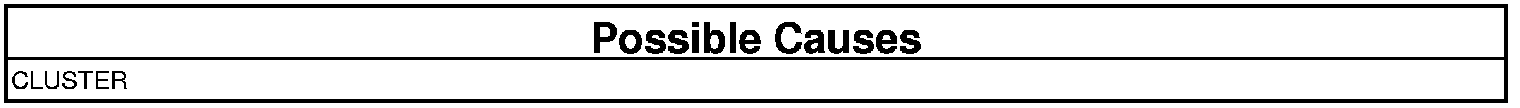

- Replace the Cluster.
- Perform the BODY VERIFICATION TEST Body Verification Test

No

- Test complete.
