Washer Reservoir - Installation

INSTALLATION

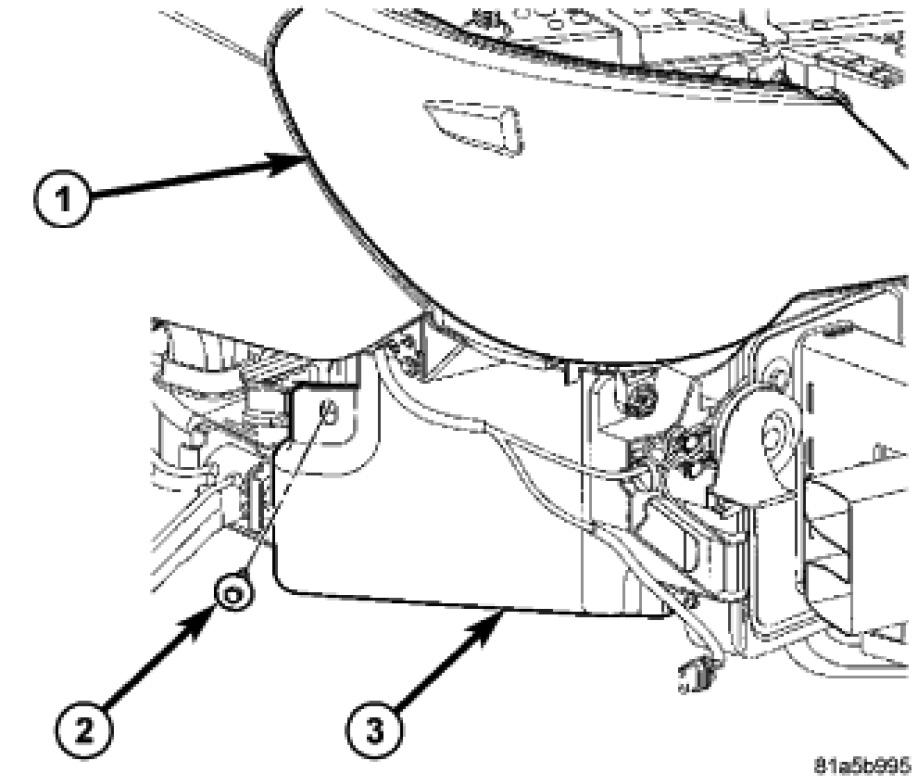

1. Install reservoir and mounting bolts (2).
2. Connect wire connector to washer pump and harness mounting tab.
3. Connect washer fluid hose at in-line connector on top of the right shock tower.
4. If fascia was partially removed, reinstall bumper fascia as needed Front Fascia - Installation.
5. Fill washer fluid.
6. Connect the battery negative remote cable.
