Installation

INSTALLATION

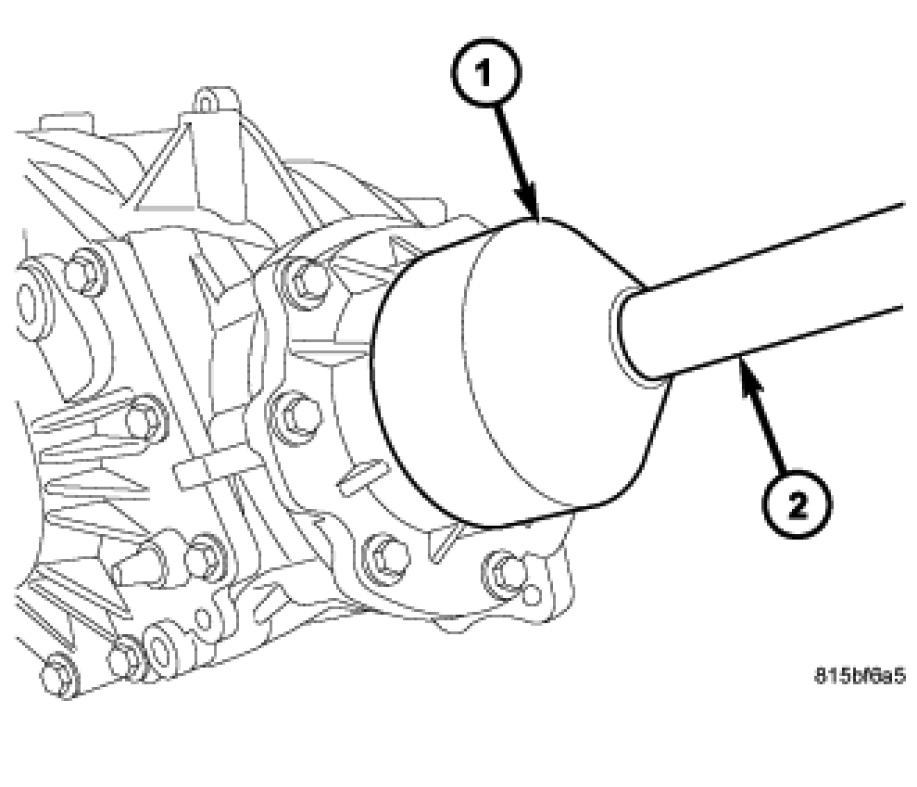

1. Using Installer 9684 (1) and Handle C-4171(2), install new PTU output flange seal.

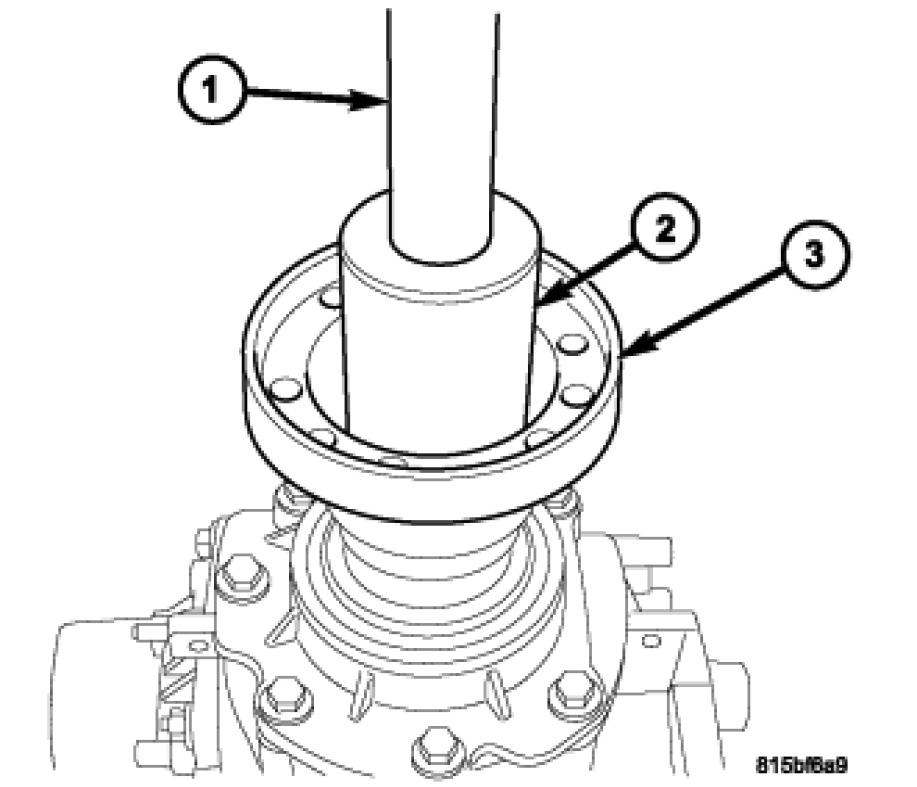

2. Using Installer 9321 (2) and Handle C-4171 ,(1) install output flange (3). Lightly tap on flange until sufficient threads are exposed to start flange nut by hand.




3. Using Spanner Wrench 6958 (1), install and torque output flange nut to 102 Nm (75 ft. lbs.) torque.
4. Install propeller shaft Propeller Shaft - Installation.
