Installation

INSTALLATION

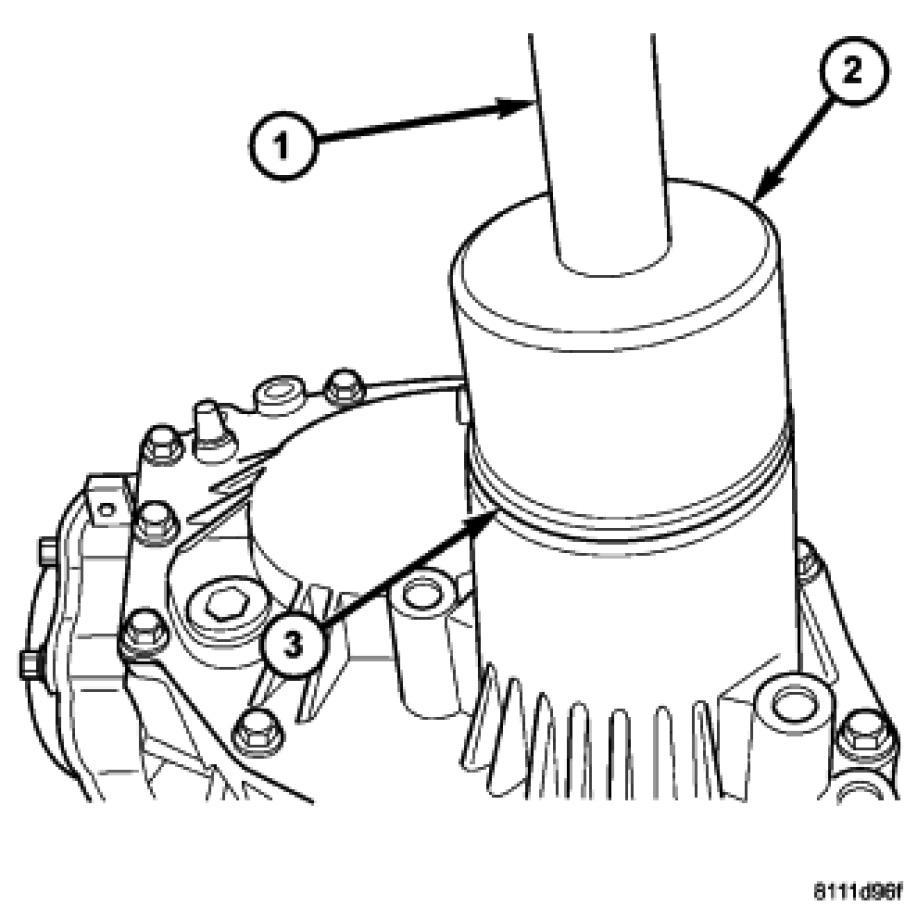

1. Install outer halfshaft seal using Handle C-4171 and Installer 6536A.
2. Install right halfshaft assembly. Half Shaft - Installation
