Home >> Chrysler >> 2008 >> Sebring Convertible V6-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Seals and Gaskets >> Service and Repair >> Seal-Input Shaft >> Installation

Installation







INSTALLATION

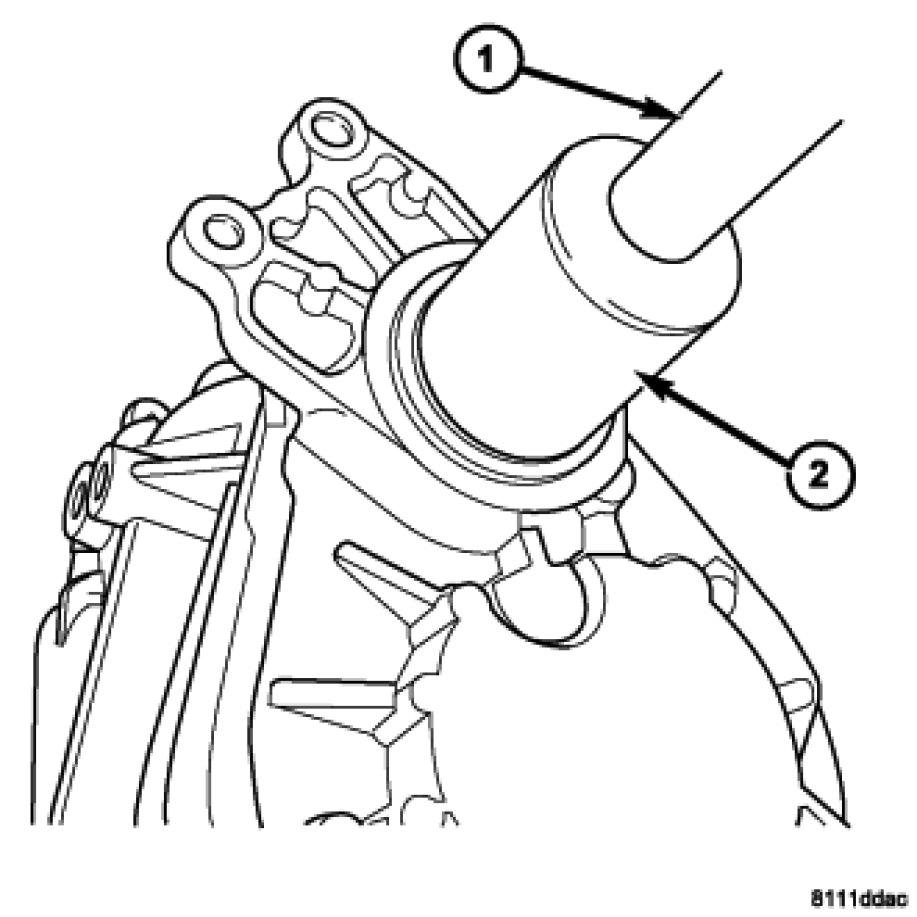

1. Using Handle C4171 (1) and Installer L-4429-3 (2), install input shaft seal.
2. Install Power Transfer Unit. Installation
