Installation

INSTALLATION

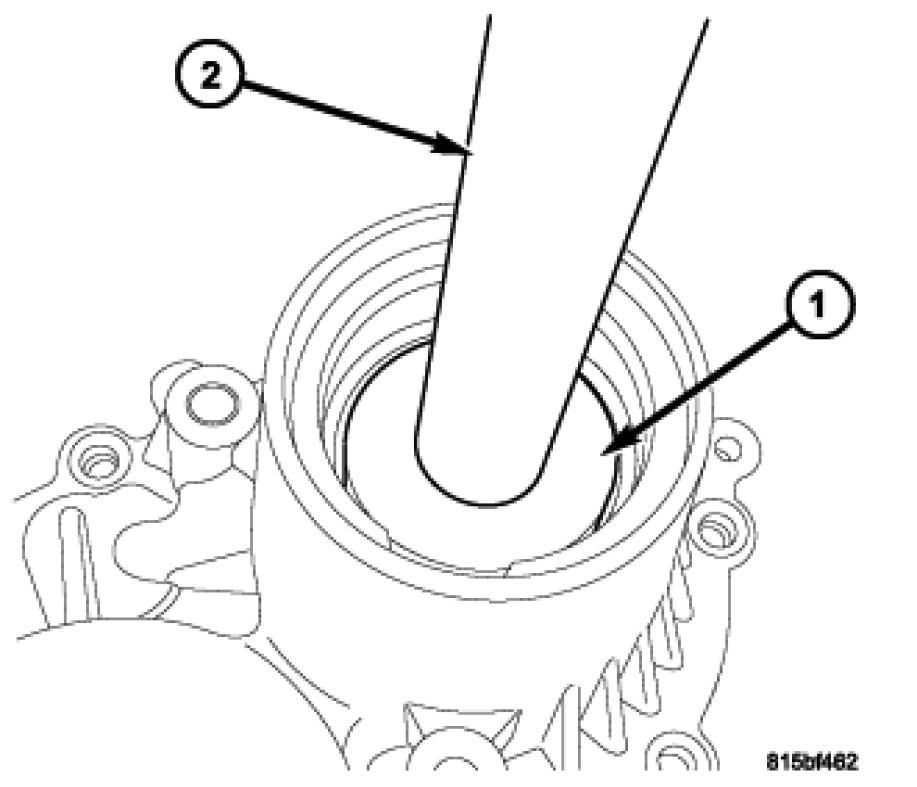

1. Using Driver Handle C-4171 (2) and Installer 9683 (1), install inner halfshaft seal until it bottoms in bore.
2. Install roller bearing.




3. Install end cover (1)to PTU housing. Install and torque end cover-to-housing bolts (2) to 28 Nm (20 ft. lbs.).




4. Using driver Handle C-4171 (1) and seal Installer 6536A (2), install outer halfshaft seal (3).
5. Install PTU assembly. Installation
