Disassembly

DISASSEMBLY

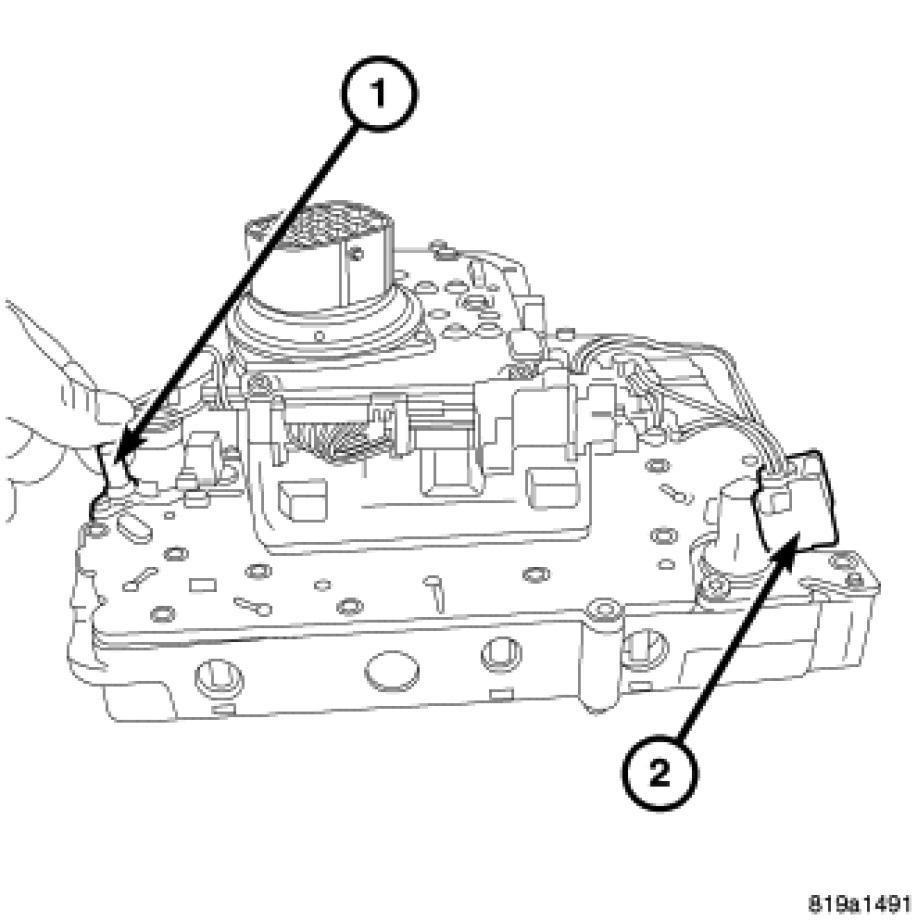

1. Unplug the electrical connectors (1, 2) at the valve body.

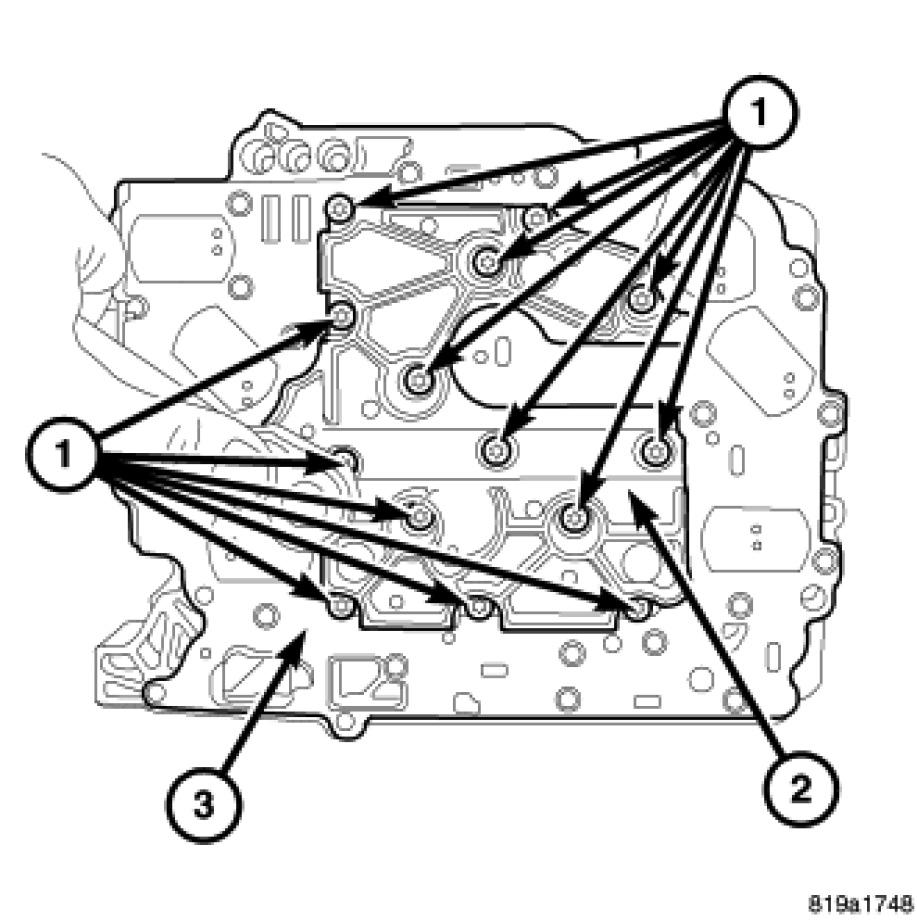

2. Remove the bolts (1) at the clamp plate (2) and remove the clamp plate.

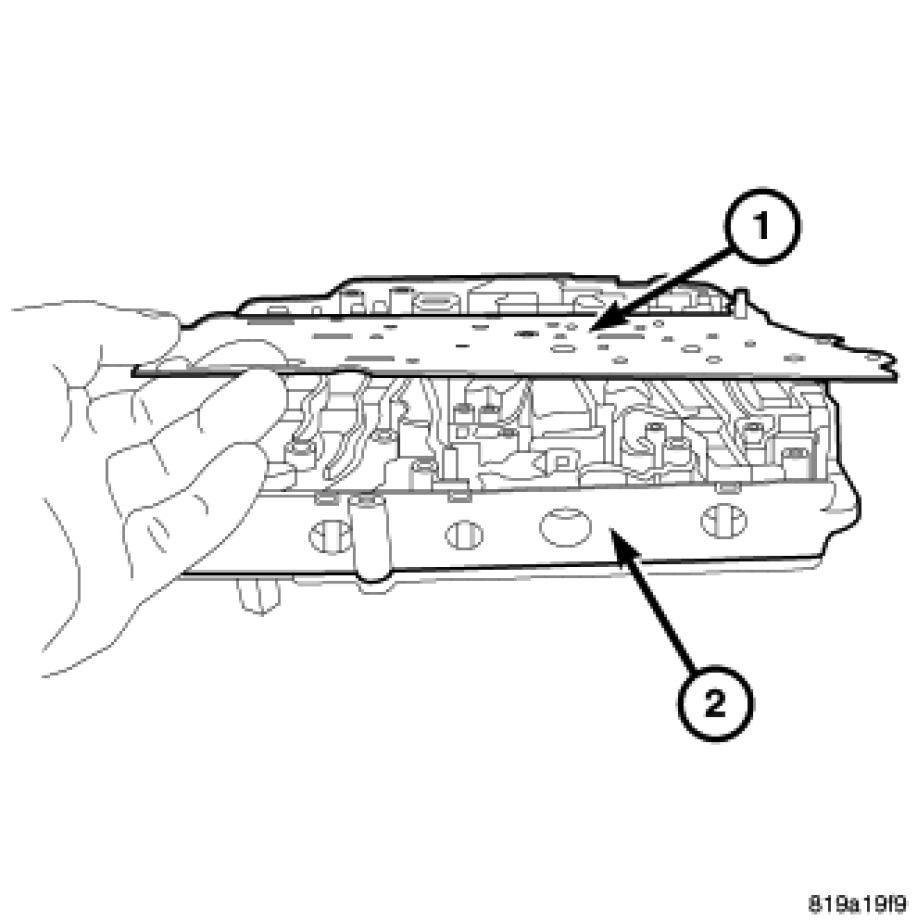

3. Turn valve body over and remove the solenoid pack (1) from the valve body (2).




4. Remove the bolts (1) at the line pressure sensor (2).
5. Remove the line pressure sensor from the valve body.




6. Remove the bolt (1) at the pressure control solenoid (2).

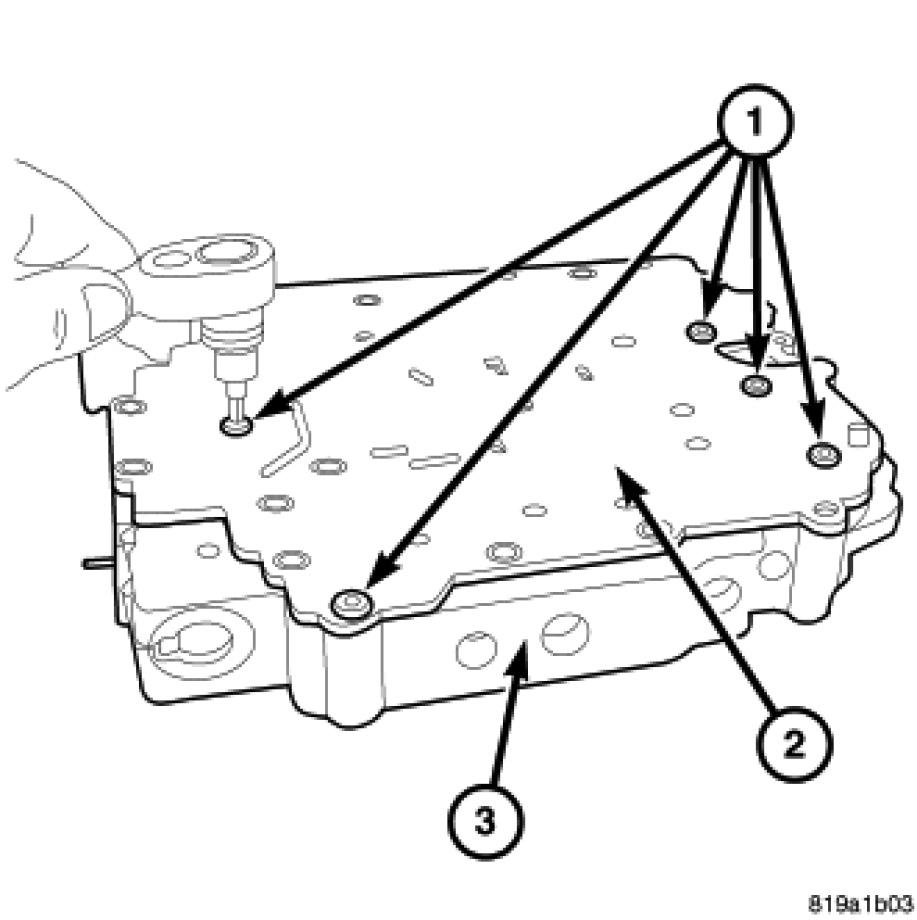

7. Remove the bolts (1) at the transfer plate (2).




8. Remove the transfer plate (1).

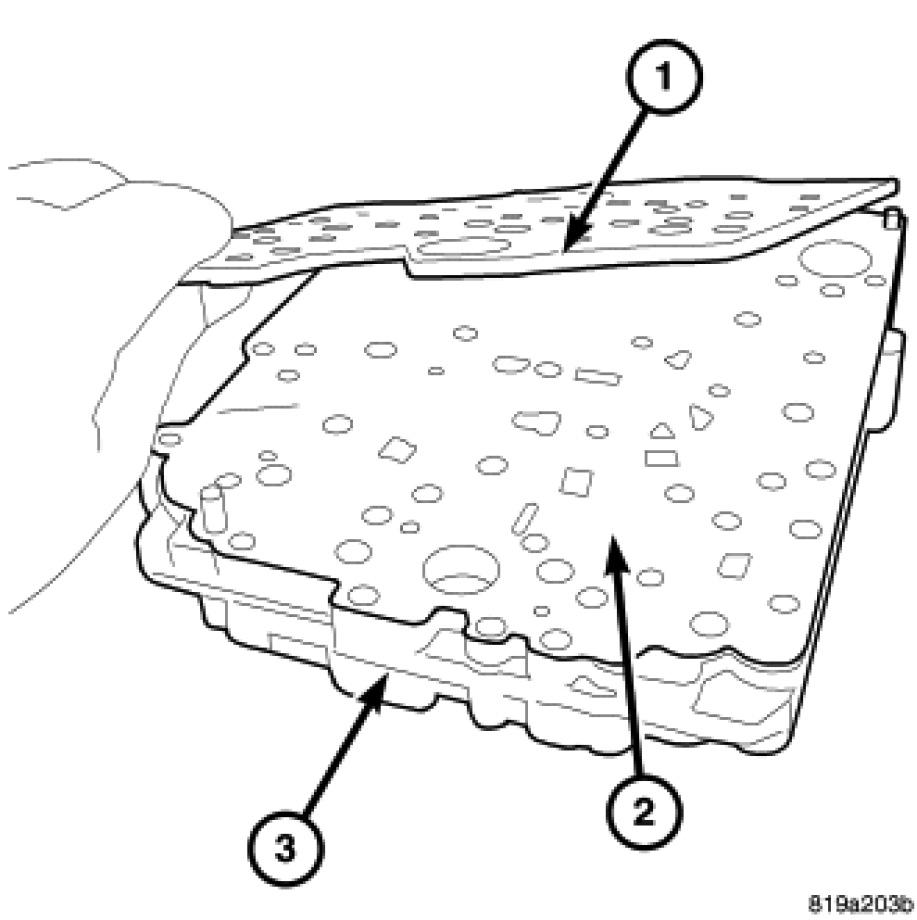

9. Remove the outer separator plate (1).

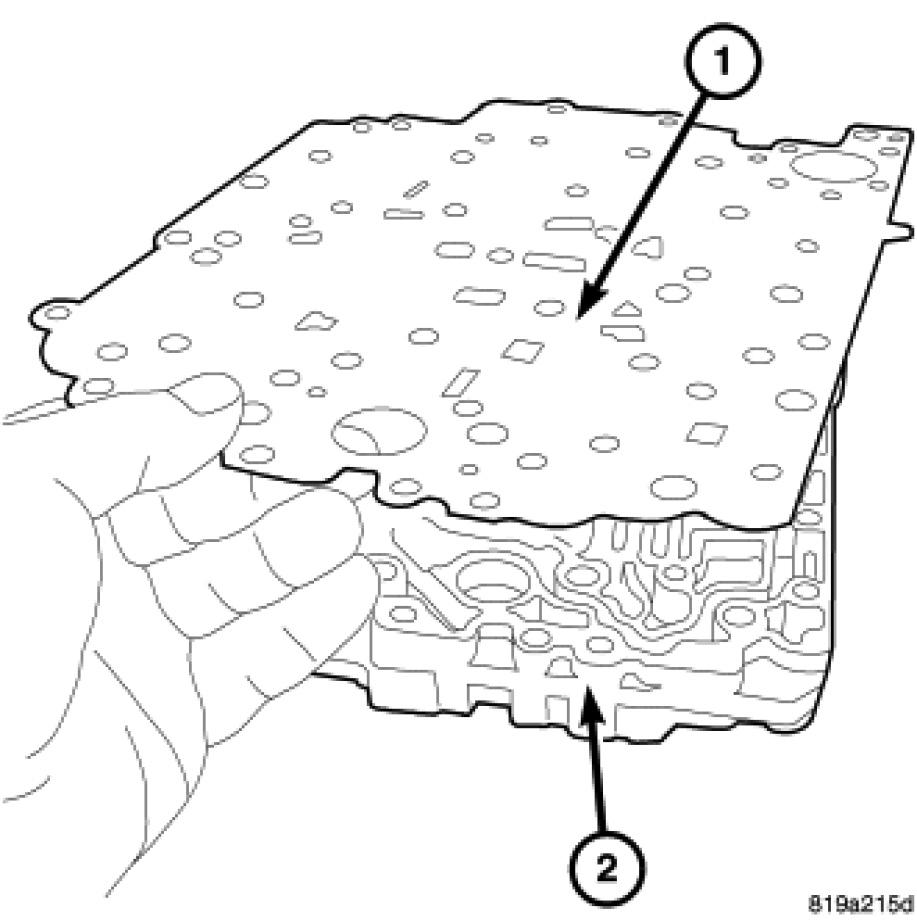

10. Remove the inner separator plate (1).

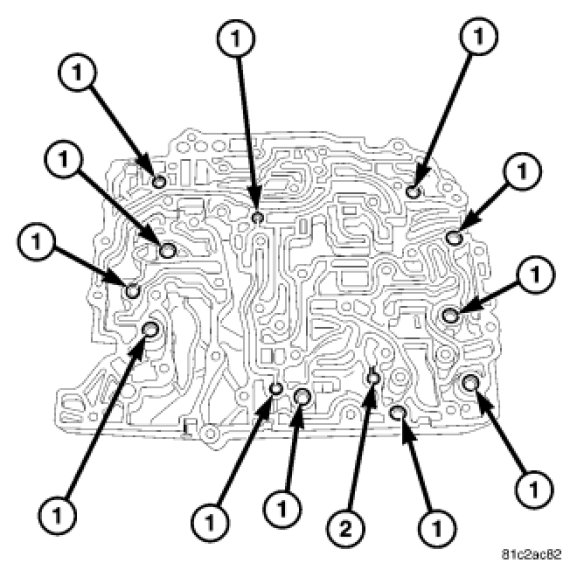

11. Remove the check balls (1) and (2) if equipped.

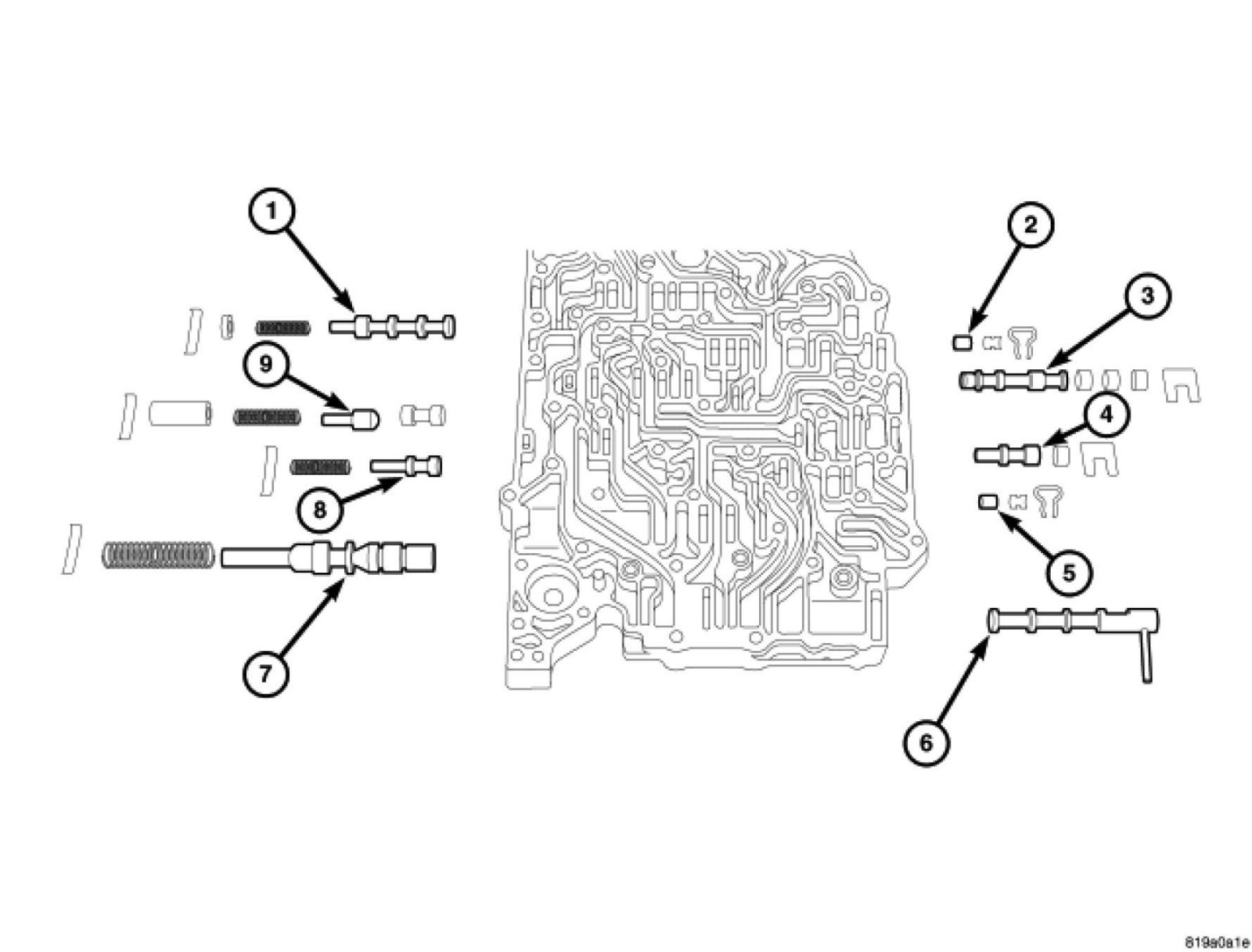

NOTE: Use exploded view for disassembly.

NOTE: Tag all valve/spring assemblies for reassembly identification.

12. Remove valves from valve body.
