Removal

REMOVAL





1. Remove the engine cover.
2. Remove the battery Battery - Removal.
3. Remove the battery tray Battery Tray - Removal.
4. Remove the relay (1) at the core support.




5. Drain the radiator Service and Repair.

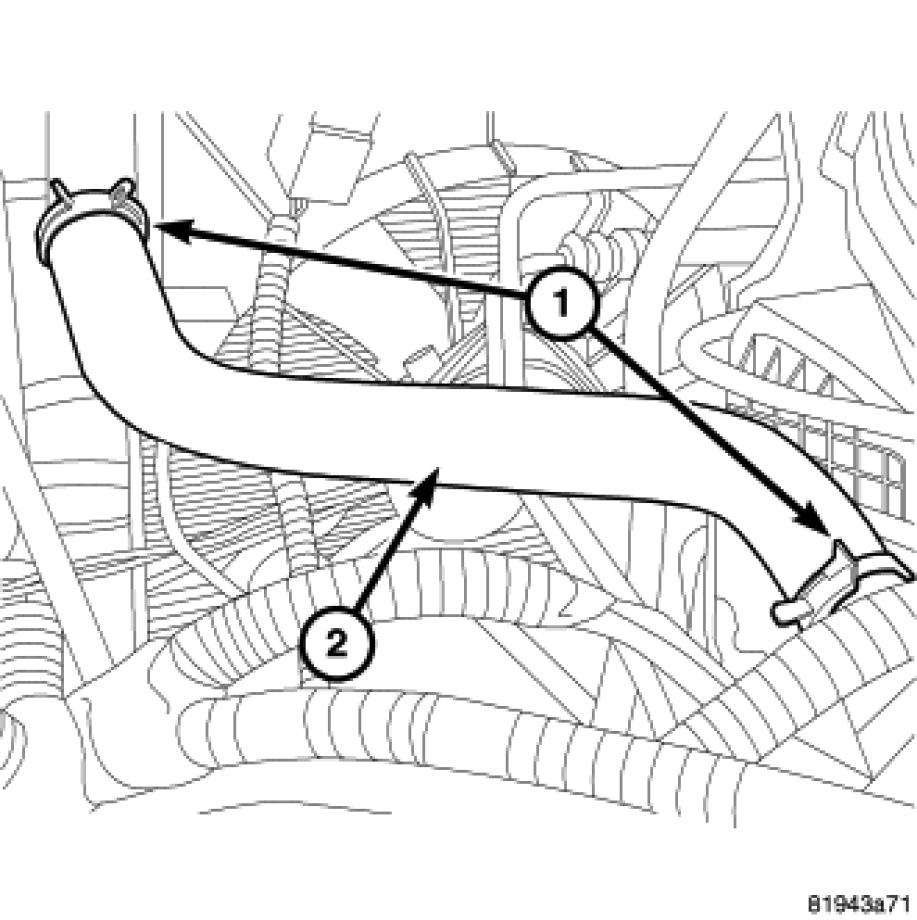

6. Remove clamps (1) at the upper radiator hose (2).
7. Remove the upper radiator hose Service and Repair.

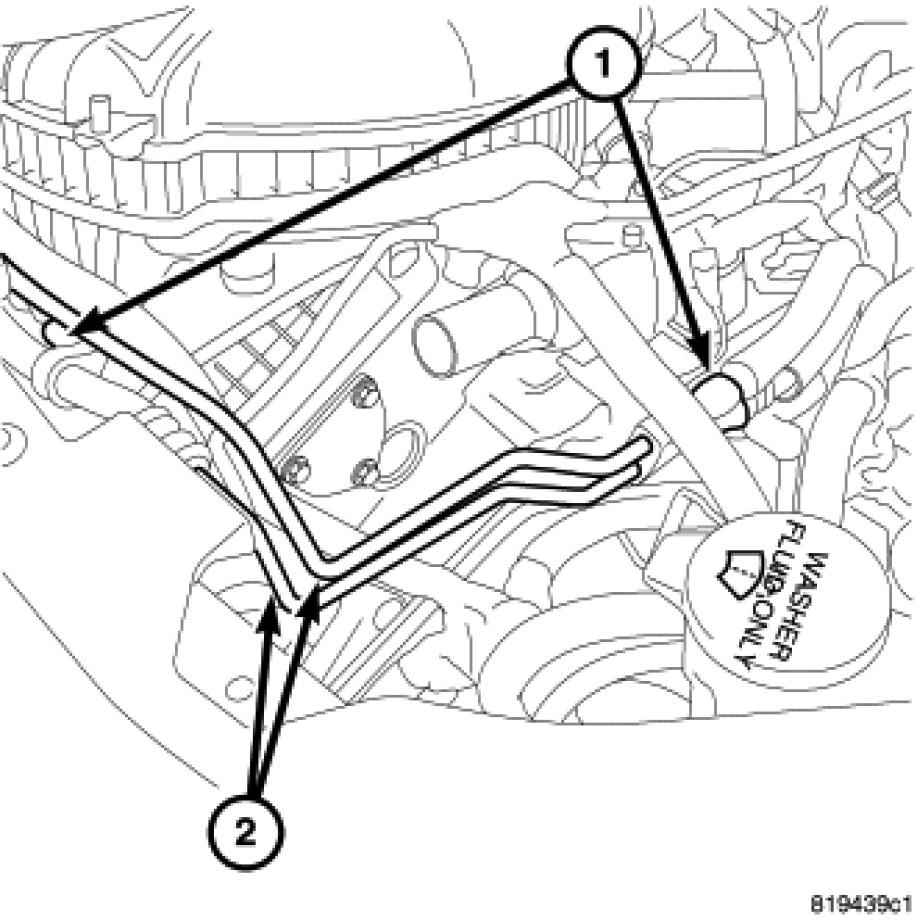

8. Remove the bolts (1) holding the power steering lines (2).




9. Remove shift cable (1) from manual lever (2).




10. Remove the top valve body oil pan (1) bolts.




11. Remove the solenoid pack connector (2) at valve body oil pan (1).




12. Raise the vehicle on a hoist.

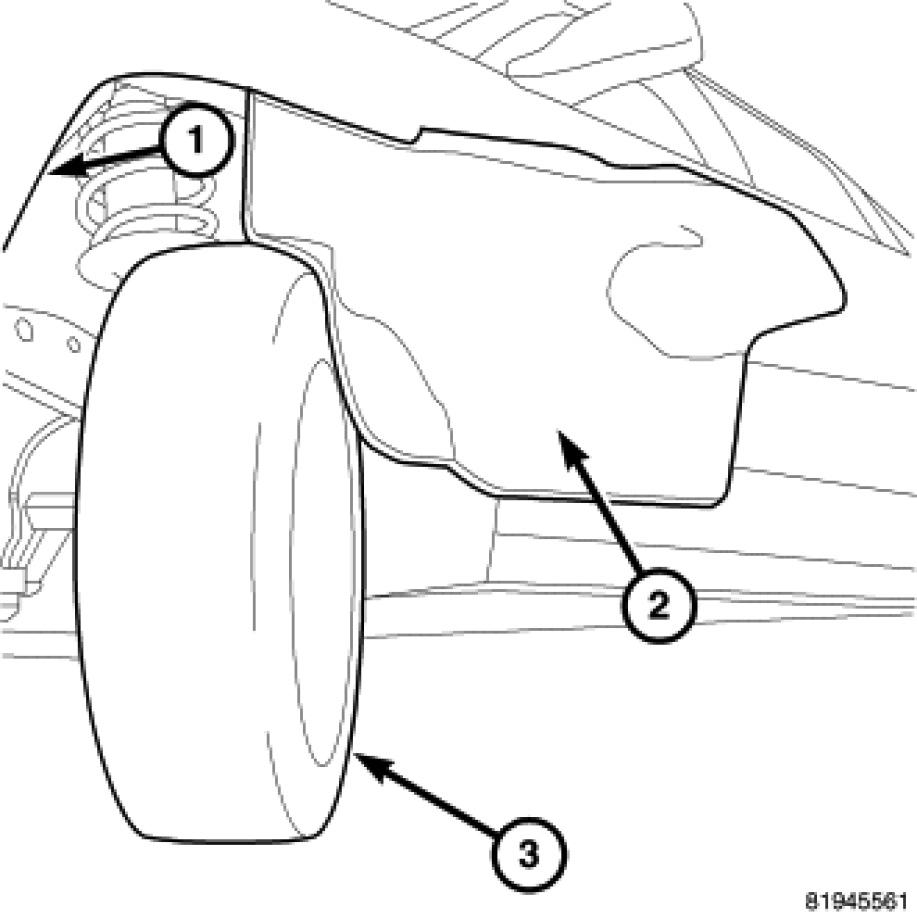

13. Remove the front left side inner wheel splash screws from front side of wheel opening (1) and fold shield (2) back.
14. Turn the wheel (3) fully to the left.




15. Remove the bolt (2) at the ground cable (3).

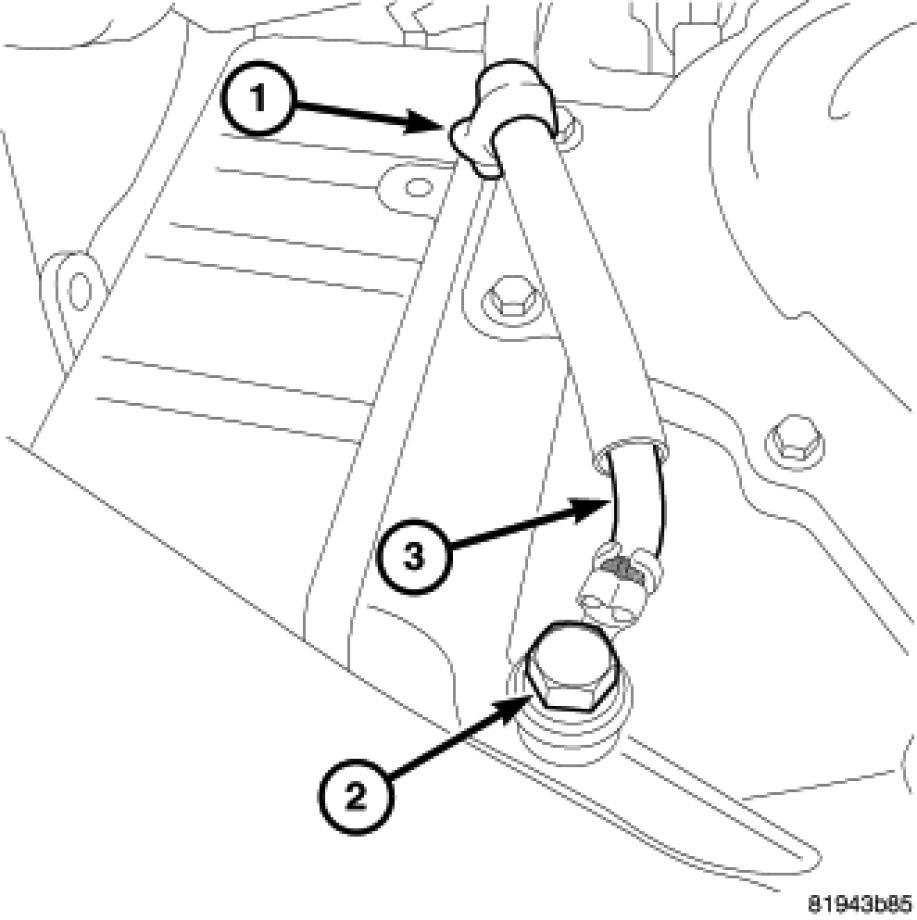

16. Remove the clip (1) at the valve body pan.
17. Move cable away from the valve body pan.




18. Remove the pressure tap plug (2) at valve body oil pan.
19. Remove the lower valve body oil pan bolts (1) and drain transmission fluid.
20. Remove the valve body oil pan.
