Ignition Coil - Installation

3.5L

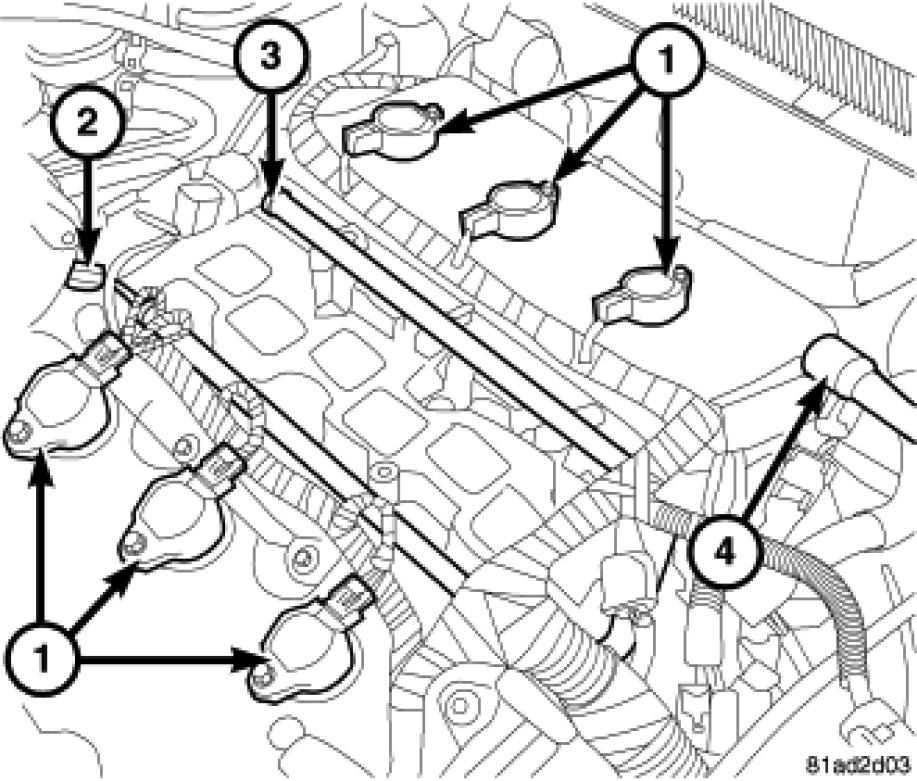

1. Install ignition coil (1).
2. Tighten bolt to 8 Nm (71 in. lbs.).




3. Install engine cover studs (1) in the two outside ignition coils on the front of the engine.
4. Tighten bolt to 8 Nm (71 in. lbs.).

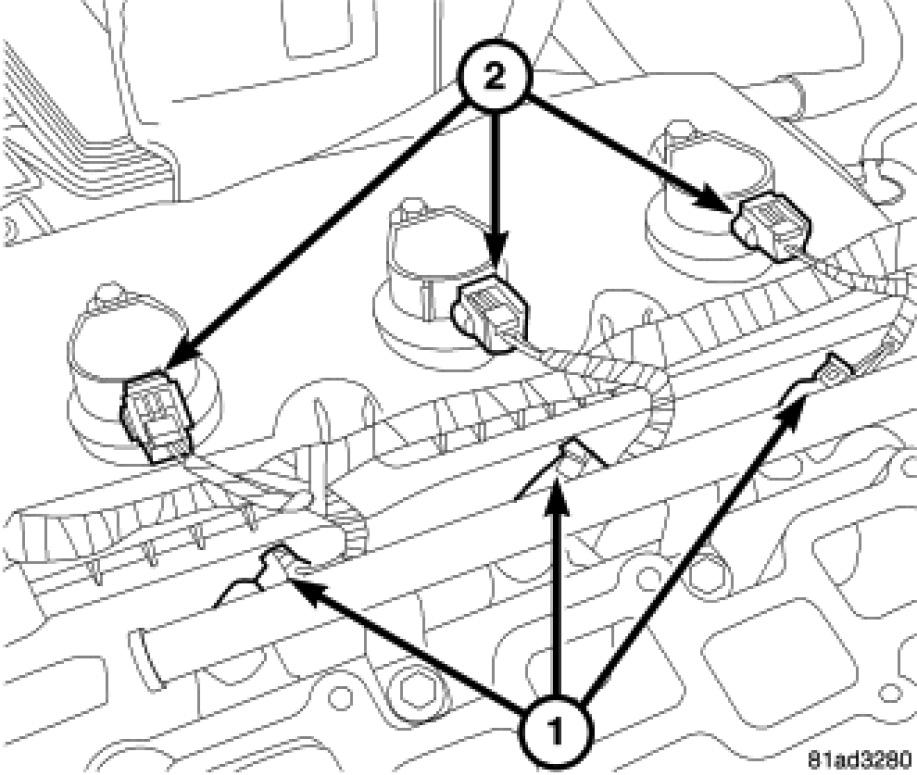

5. Connect electrical connector and lock (2).
6. Install intake manifold, Intake Manifold - Installation.
7. Connect negative battery cable.
8. Install engine cover.
