Removal

3.5L





1. Disconnect the negative battery cable.
2. Remove the engine cover.
3. Disconnect the electrical connector.
4. Remove the 4 mounting bolts.

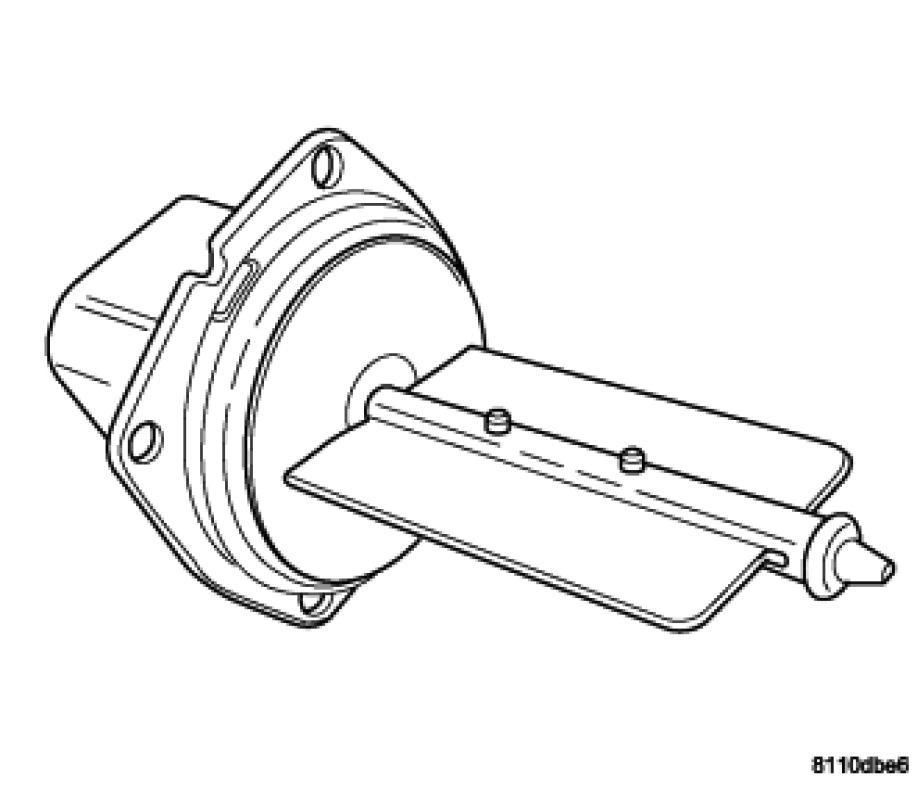

5. Pull manifold tune valve (MTV) straight out of manifold.

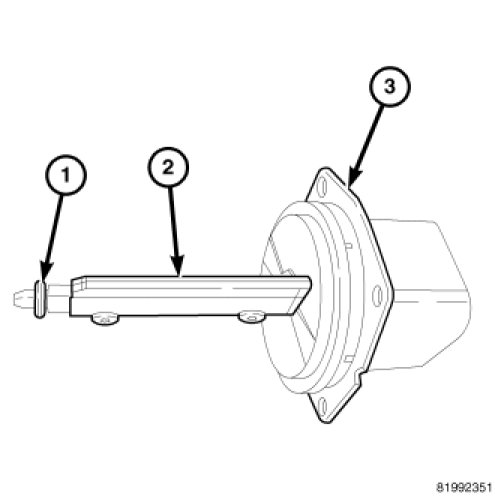

6. Be sure the O-ring (1) is still in place on the MTV shaft. If not, refer to the following step.




7. If O-ring is not on MTV shaft (from previous step), gently pry it (1) from intake manifold.
