Throttle Body - Removal

3.5L





1. Disconnect and isolate negative battery cable at battery.
2. Remove engine cover.
3. Remove clean air hose from throttle body.

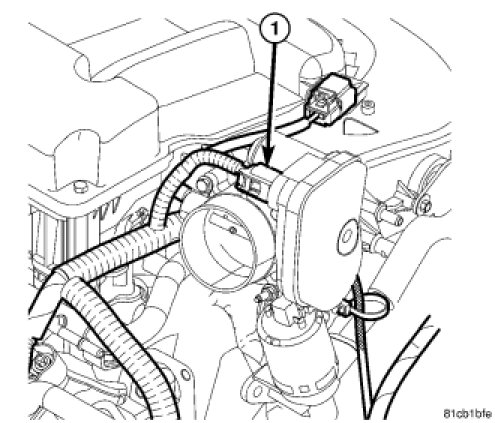

4. Disconnect electrical connector (1) from throttle body.

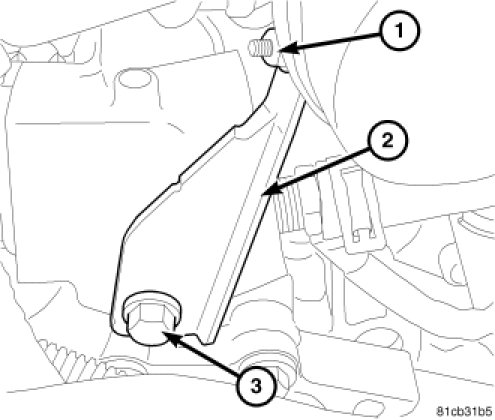

5. Remove nut (1) form throttle body bracket (2).
6. Remove bolt (3) and throttle body bracket (2).

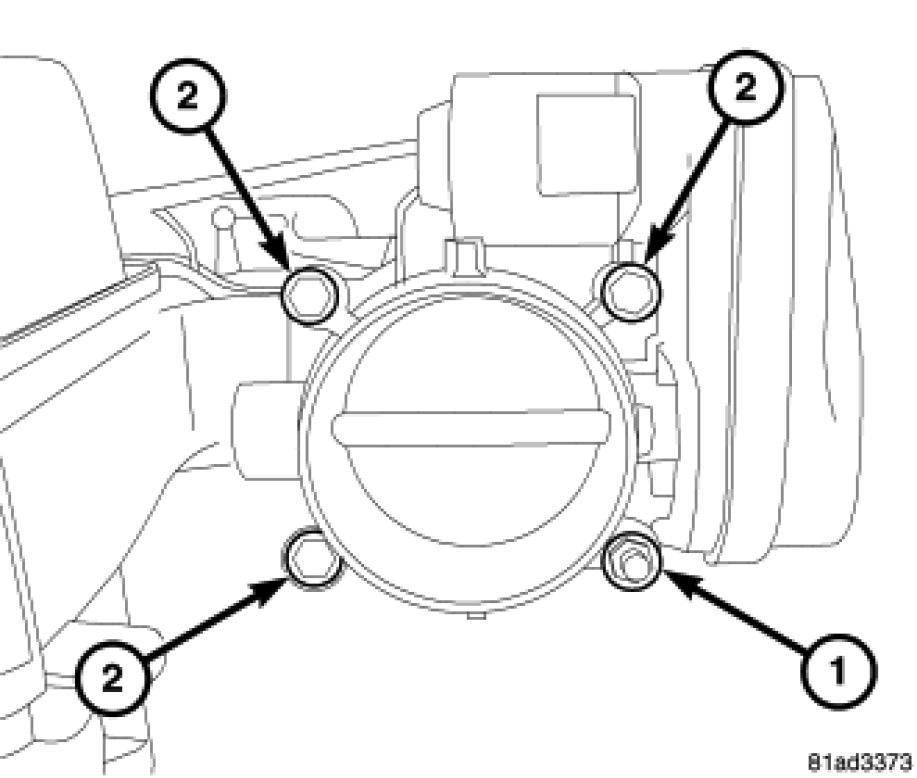

7. Remove bolts (2), stud (1) and remove throttle body from intake manifold.
