EGR Valve - Installation

3.5L

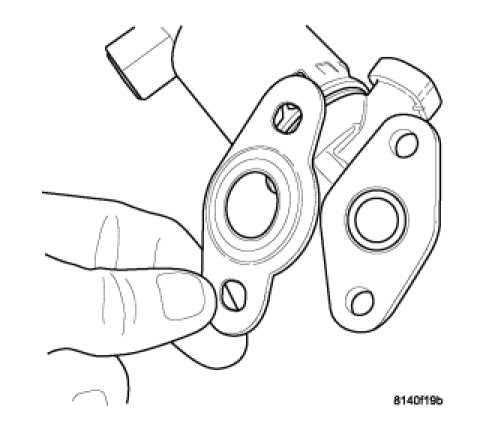

1. Install new exhaust gas recirculate (EGR) valve gasket to EGR valve.




2. Install EGR valve (2), gasket and bolts (6) to cylinder head (1). Tighten to 30 Nm (22 ft. lbs.).




3. Install new gasket (5), EGR tube (4) and bolts (3) to EGR valve (2). Tighten to 15 Nm (11 ft. lbs.).




4. Connect electrical connector (6) to EGR valve (1).
5. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
