Supply Hose - 3.5L Engine

3.5L ENGINE

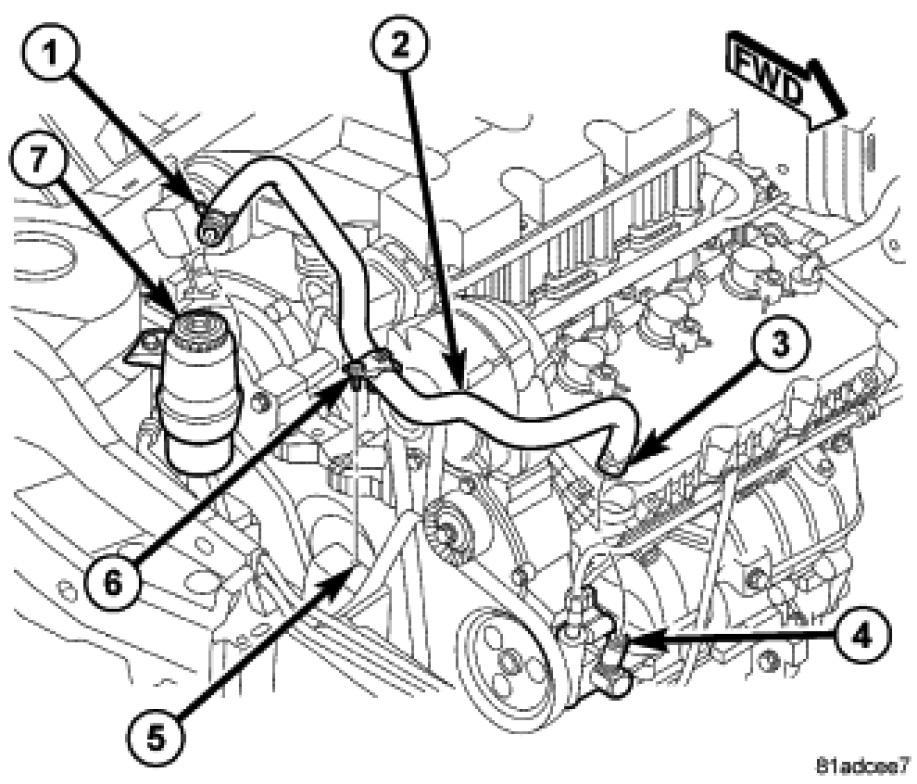

1. Slide hose clamps (1, 3) onto the ends of the power steering fluid supply hose (2) far enough to clear the fittings on the reservoir and pump once the hose is installed.
2. Place the pump end of the supply hose onto the pump supply fitting (4). Expand the hose clamp (3) and slide it over the hose and pump supply fitting. Secure the clamp once it is past the bead formed into the fluid supply fitting.
3. Lift the coolant recovery container as high as its connected hoses will allow, then install the clip (6) in the mounting hole (5) securing the supply hose to the coolant recovery container's lower mounting point.




4. Lower the coolant recovery container (4) to its mounted position and install the mounting screws (1).




5. Place the fluid reservoir end of the supply hose (2) onto the reservoir (7) supply fitting. Expand the hose clamp and slide it over the hose and fitting. Secure the clamp once it is past the bead formed into the fluid reservoir fitting.
6. Fill and bleed the power steering system. Service and Repair
7. Check for leaks.
