Compass: Description and Operation

DESCRIPTION

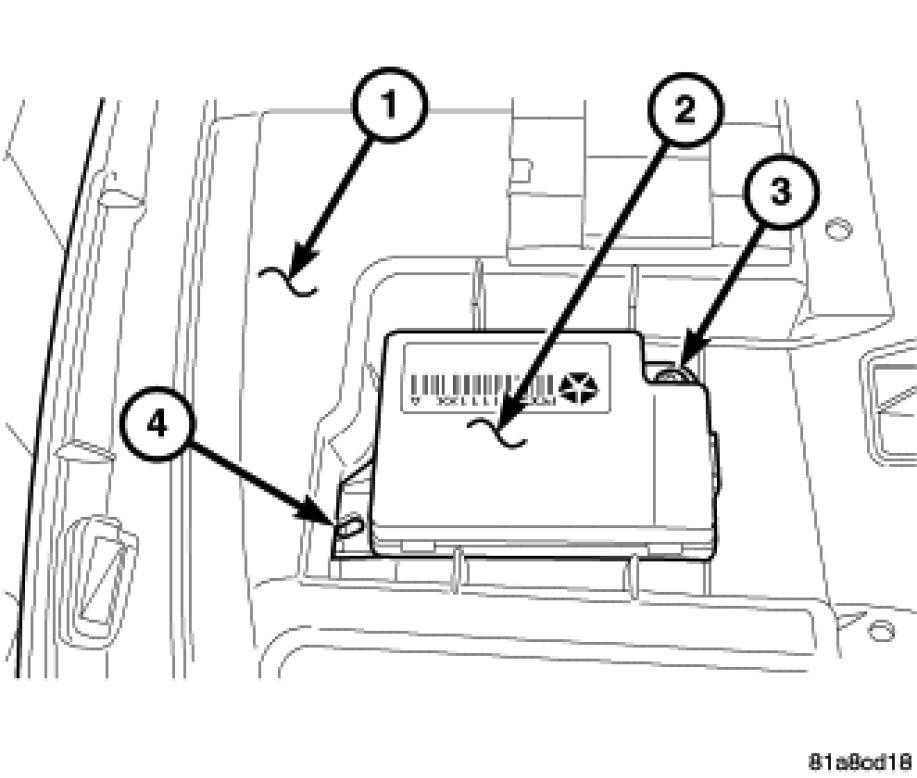

The Remote Compass Module (RCM) (2) is a separate stand alone module mounted to the top of the instrument panel (1). The RCM can be accessed by removing the instrument panel top pad, Instrument Panel Pad - Removal.

If the compass position sensor (Remote Compass Module) is inoperative and requires replacement, Removal for the appropriate procedure.
