Front Exhaust Maniverter

REMOVAL - FRONT EXHAUST MANIVERTER





1. Disconnect and isolate the negative battery cable.

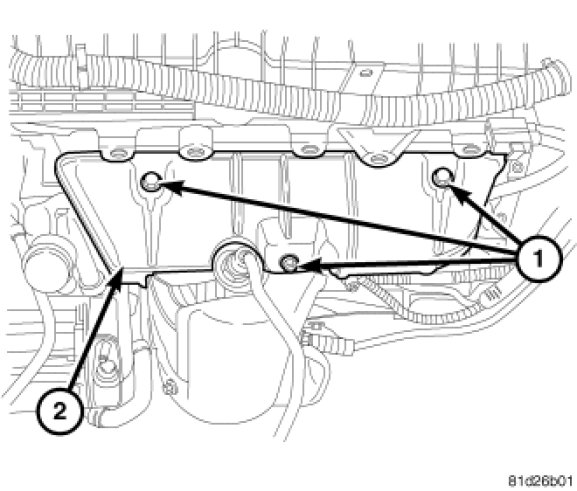

2. Remove the three fasteners, and remove the upper heat shield.




3. Remove the 12 belly pan fasteners (1) and remove the belly pan (2).
4. Remove the front crossunder pipe bolts.
5. Disconnect and remove the front lower maniverter oxygen sensor.
6. Loosen the oil level indicator tube retaining bolt and position the dipstick out of the way.




7. Disconnect and remove the front upper maniverter oxygen sensor.

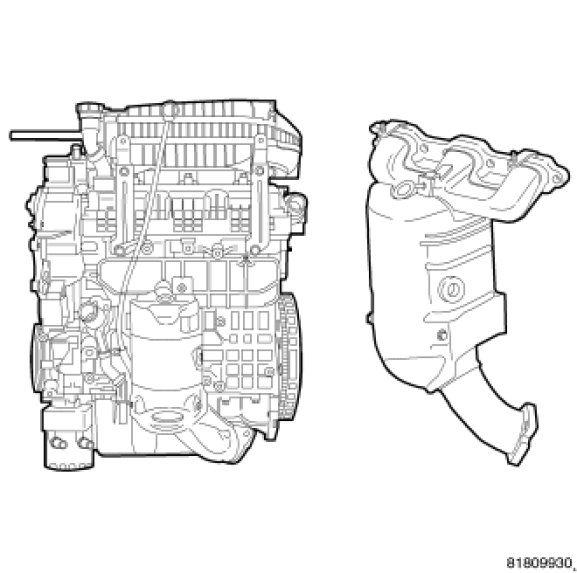

8. Remove the maniverter retaining bolts and maniverter.
