Water Pump - Installation

3.5L ENGINE

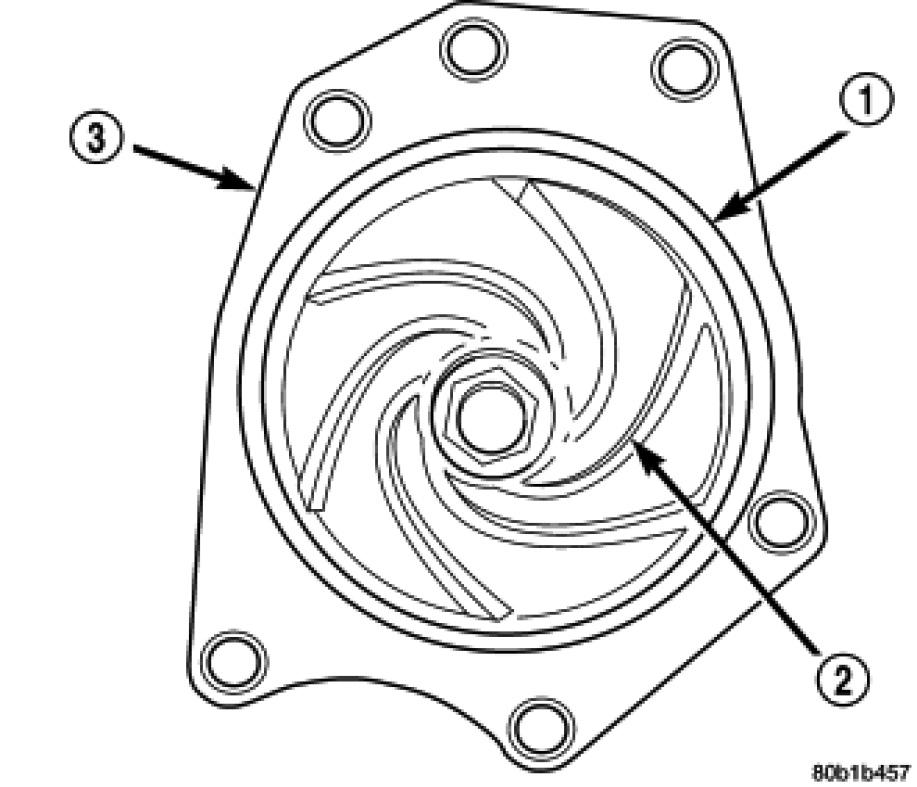

1. Clean all O-ring surfaces on pump and cover.
2. Apply Mopar(R) Dielectric Grease or the equivalent silicone grease to the O-ring to facilitate assembly. Install new O-ring on water pump.
3. Position water pump to engine.
4. Install mounting bolts and tighten to 12 Nm (105 in. lbs.).
5. Install timing belt Timing Belt & Sprockets - Installation.
6. Fill cooling system Service and Repair.
