Tensioner Pulley Assembly
INSTALLATION - TENSIONER PULLEY ASSEMBLY

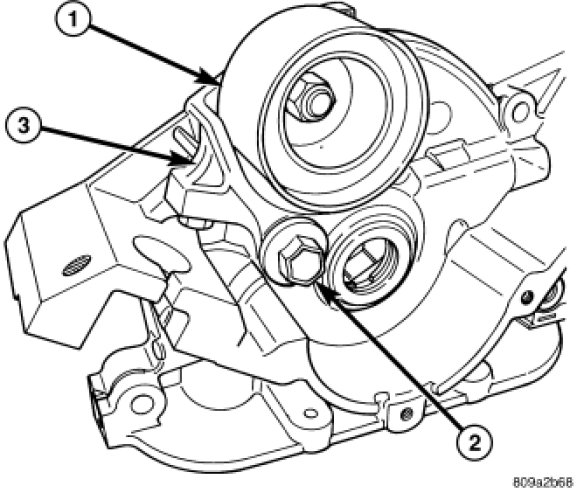

1. Install the timing belt tensioner pulley (1) assembly. Tighten the pivot bolt (2) to 61 Nm (45 ft. lbs.).
2. Install the timing belt. Timing Belt & Sprockets - Installation
INSTALLATION - TENSIONER PULLEY ASSEMBLY
1. Install the timing belt tensioner pulley (1) assembly. Tighten the pivot bolt (2) to 61 Nm (45 ft. lbs.).
2. Install the timing belt. Timing Belt & Sprockets - Installation
