Installation

INSTALLATION

RIGHT CYLINDER HEAD





1. Position the camshaft seal into the cylinder head (3).
2. Using special tool MD-998306 (2) tap the seal into place.
3. Apply light coat of clean engine oil to the camshaft oil seal lip and Special Tool 6788 Seal Protector Sleeve.
4. Install oil seal Special Tool 6788 Seal Protector Sleeve onto the camshaft.
5. Install the right cylinder head.

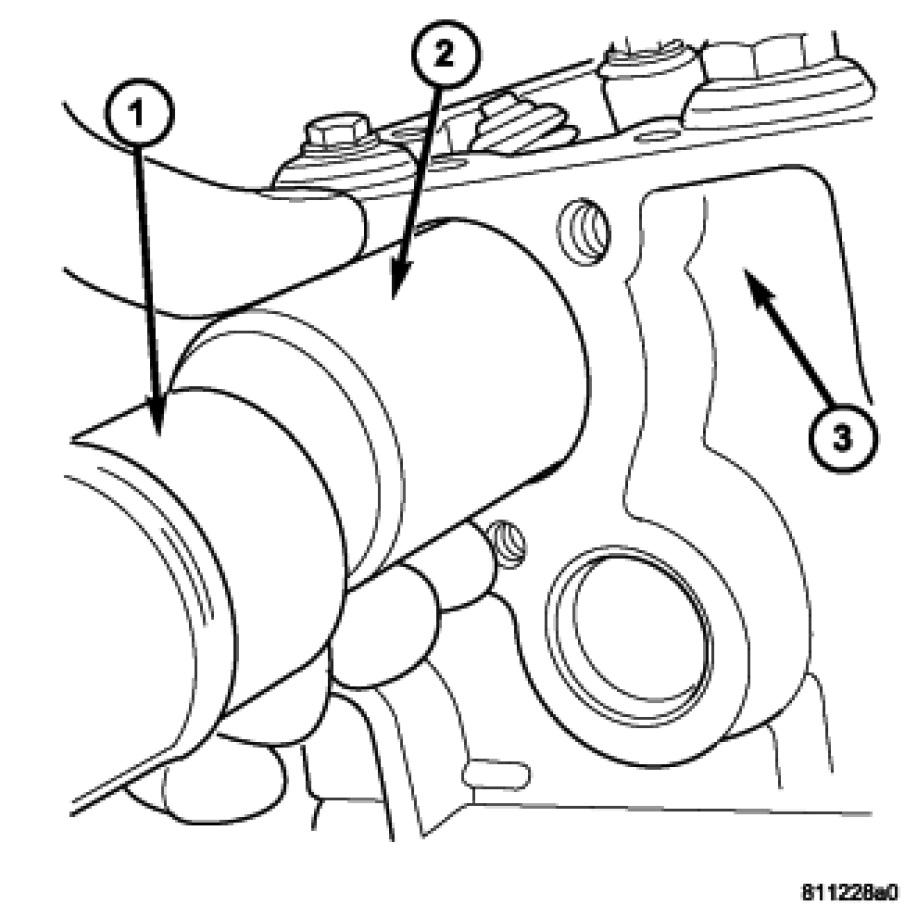

6. NOTE: When installing the camshaft (1) into the cylinder head (4), you must insert the seal protector (2) through the camshaft seal (3) until the camshaft seats, then remove Special Tool 6788 (2) from the camshaft.

LEFT CYLINDER HEAD





1. Position the camshaft seal into the cylinder head (3).
2. Using special tool MD-998306 (2) tap the seal into place.




3. NOTE: When installing the camshaft (1) into the cylinder head (4), you must insert the seal protector (2) through the camshaft seal (3) until the camshaft seats, then remove Special Tool 6788 (2) from the camshaft.
4. Apply light coat of clean engine oil to the camshaft oil seal lip and Special Tool 6788 Seal Protector Sleeve.
5. Install oil seal Special Tool 6788 Seal Protector Sleeve onto the camshaft.
6. Install the left cylinder head.
